WDR-3124A Getting Started
2-4
6. Click the Terminal tab and select ANSI or VT100 terminal type; then, click OK.
7. The Console login screen will appear. Log into the RS-232 console with the login name (default: admin)
and password (default: root, if no new password is set).

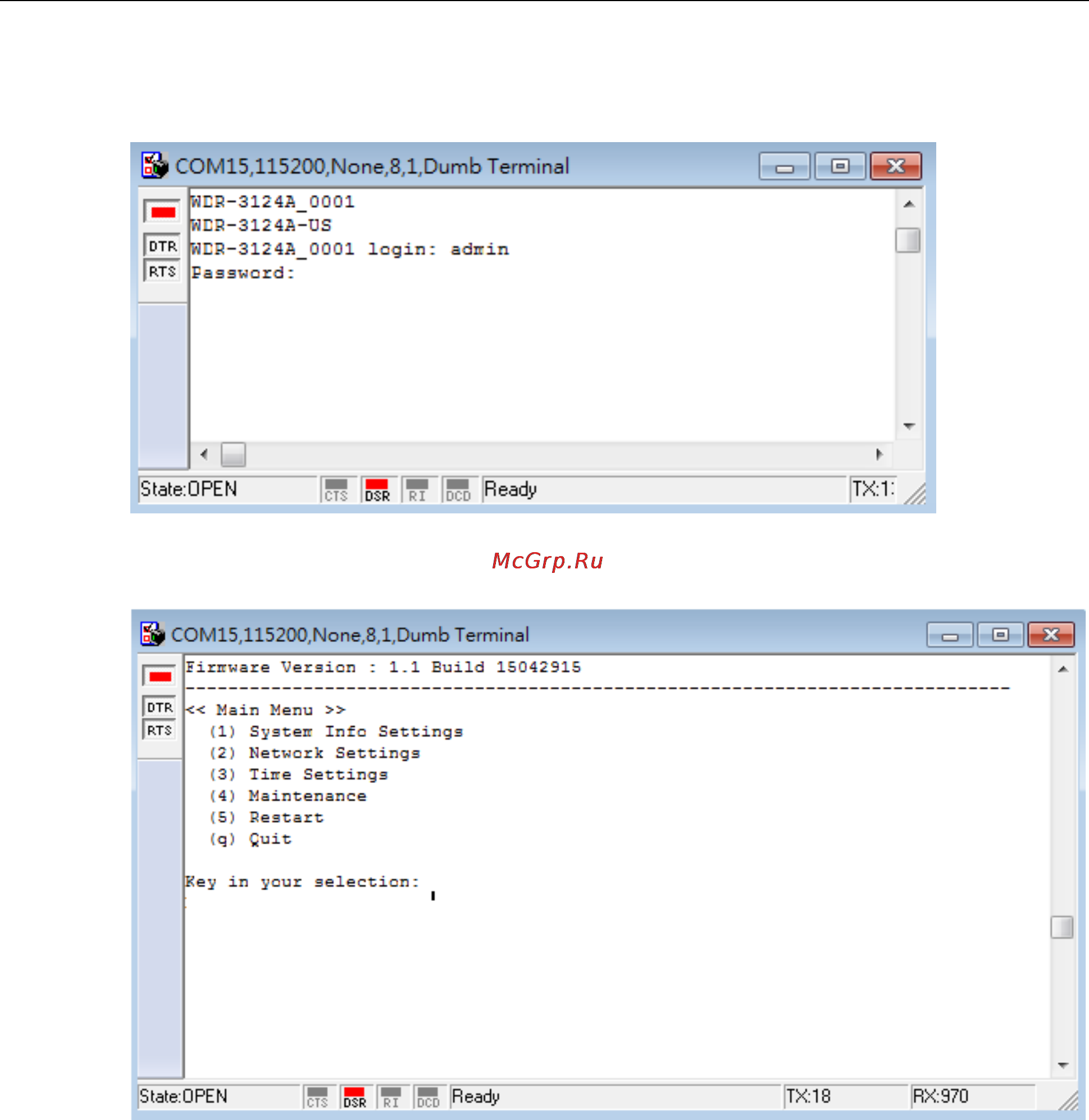

8. The WDR-3124A’s device information and Main Menu will be displayed. Please follow the description on
screen and select the administration option you wish to perform.
