WDR-3124A Web Console Configuration
3-3
NOTE

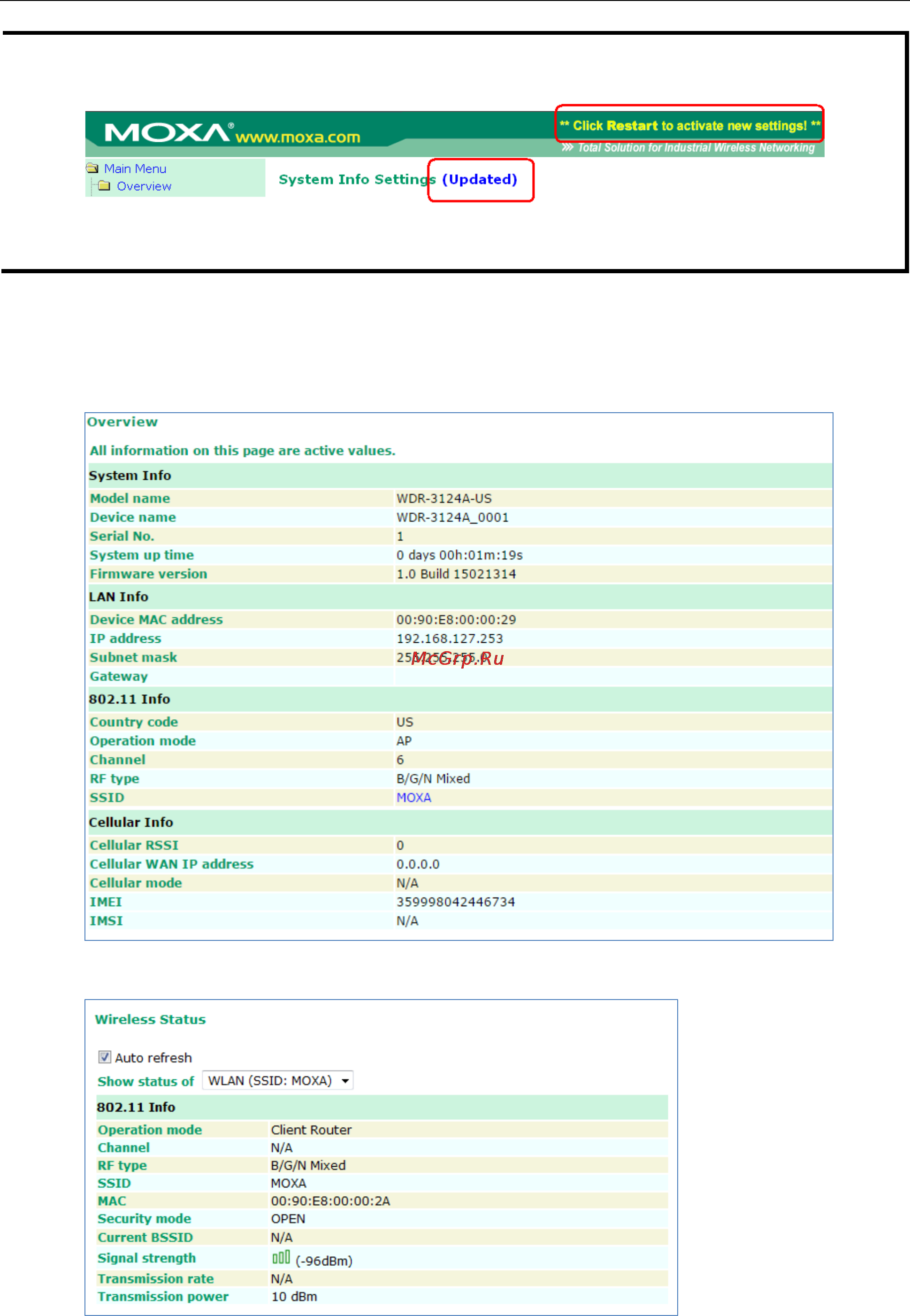

After you click
Submit to apply changes the web page will refresh and display (Updated) on the page
with
a blinking reminder
on the upper-right corner. The following figure shows an example.
To
activate the changes click Restart and then Save and Restart after you change the settings.
It may take
up to 30 seconds
for the WDR-3124A to complete the reboot procedure.
Overview
The Overview page displays a summary of the current WDR-3124A status.
To display detailed 802.11 information, click the SSID. The following figure shows an example.
