SSH Console

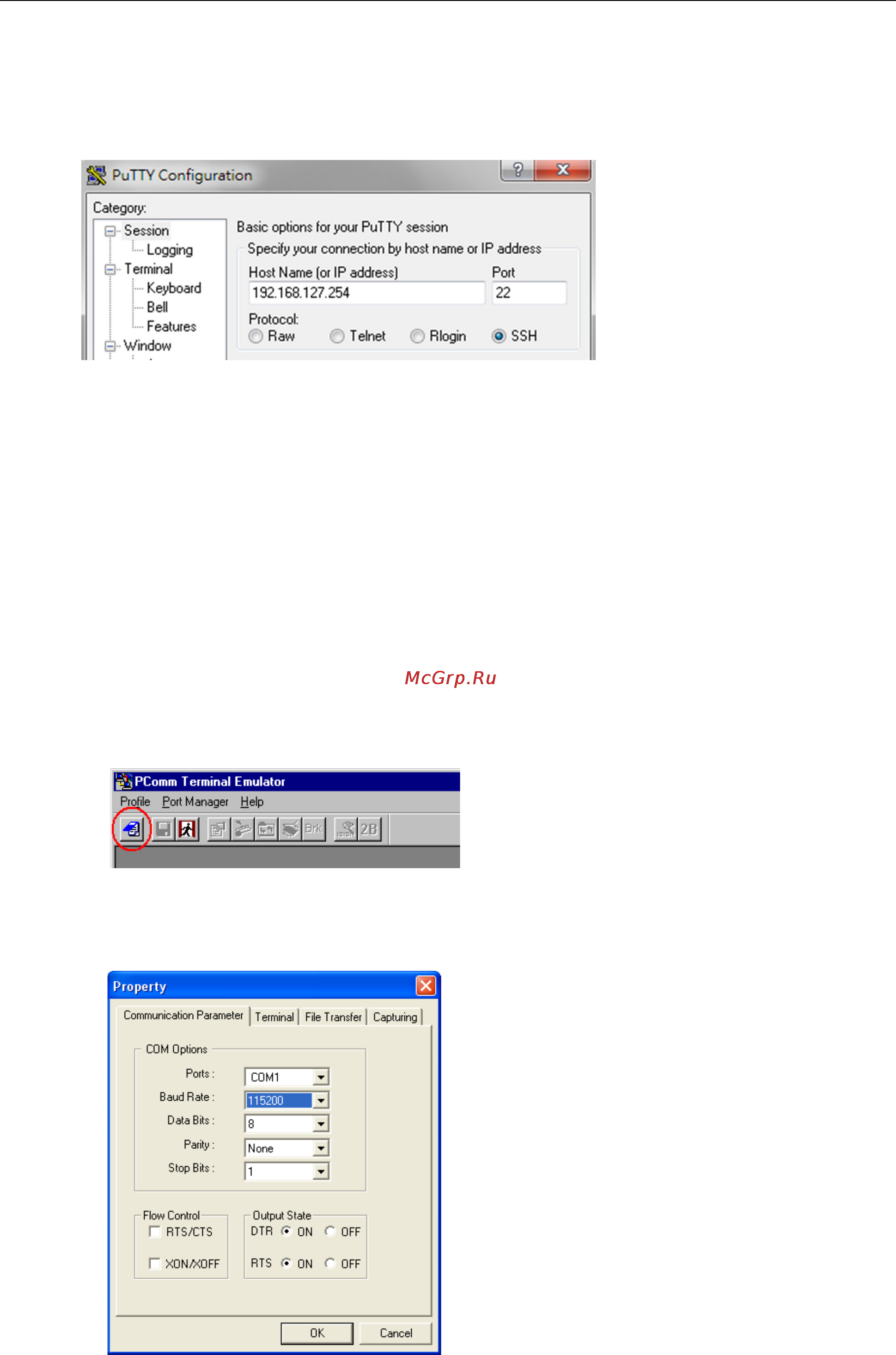

When using SSH client (e.g., PuTTY), run the client program (e.g., putty.exe) and then input the WDR-3124A’s

IP address, specifying 22 for the SSH connection port.

Serial Console

You can access the WDR-3114A through the serial console for configuration. The configuration options and

instructions are the same as if you were using the Telnet console.

The following instructions and screenshots show how to access the serial console on the WDR-3124A using

PComm Terminal Emulator, which is available free of charge as part of the PComm Lite suite. You may use a

different terminal emulator utility, although your actual screens and procedures may vary slightly from the

following instructions.

1. Turn off the WDR-3124A.

2. Use an RJ45-to-DB9 serial cable to connect the WDR-3124A’s serial console port to your computer’s RS-232

serial port; then, turn on the WDR-3124A.

3. On the computer, start PComm Terminal Emulator.

4. Click the Open icon (or click Port Manager > Open).

5. The Property window opens. Select the Communication Parameter tab and configure the parameters as

shown in the following figure (COM1 port, 115200 for Baudrate, 8 for Data Bits, None for Parity, and 1 for

Stop Bits) and click OK.
