WDR-3124A Web Console Configuration
3-5

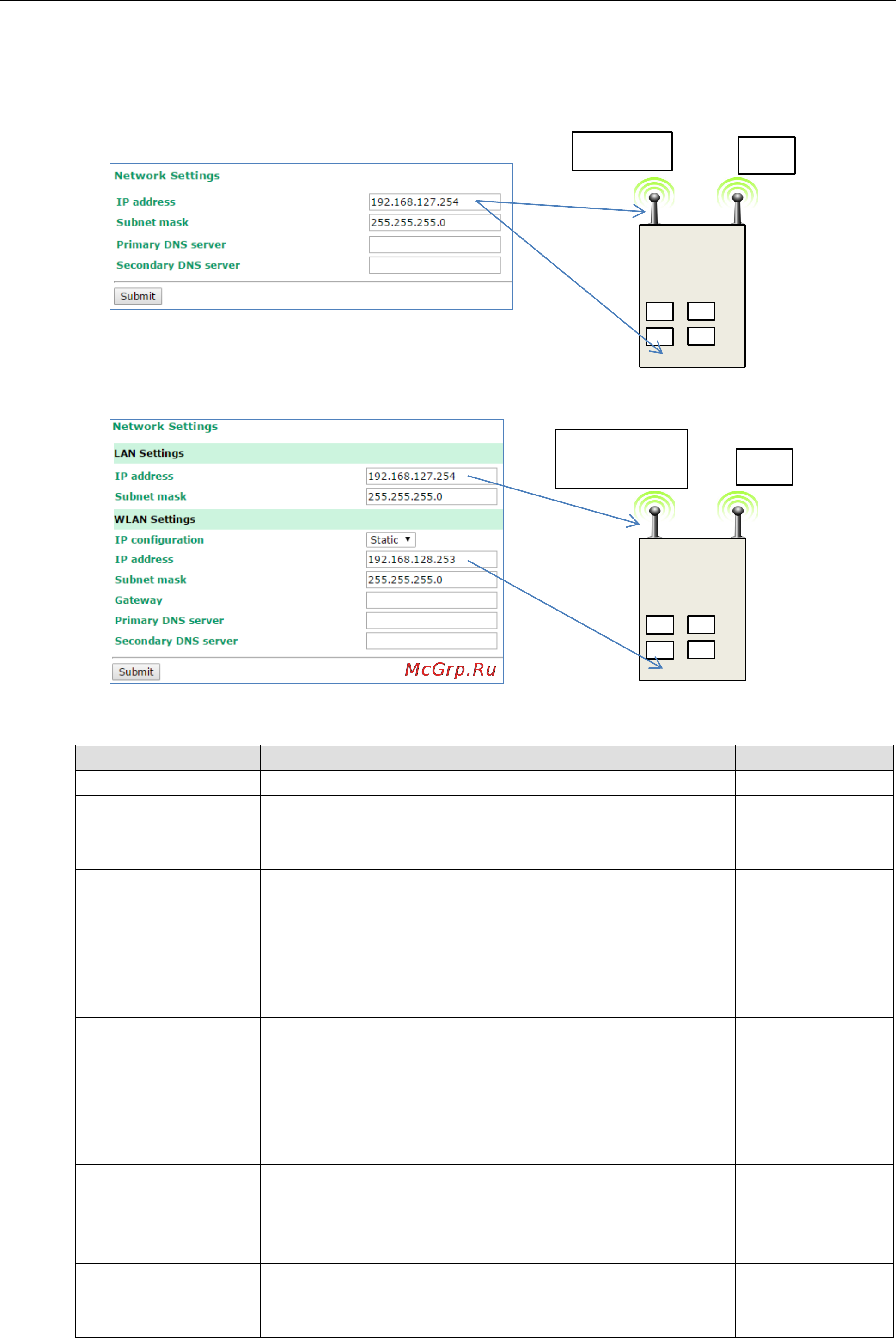

Network Settings
The Network Settings screen varies depending on the operating mode:
• In AP mode, you can configure LAN settings.
• In Client-Router mode, you can configure LAN and WLAN settings.
The following table describes the fields.
Setting Description Factory Default
IP address Identifies the WDR-3124A on the LAN or WLAN network. 192.168.127.254
Subnet mask Identifies the type of network to which the WDR-3124A is
connected (for example, 255.255.0.0 for a
Class B network, or
255.255.255.0 for a Class C network).
255.255.255.0
Primary DNS server The IP address of the primary DNS Server used by your
network. After entering the DNS Server’s IP address, you can
input the WDR-3124A’s URL (for example,
http://ap11.abc.com) in your browser’
s address field instead of
entering the IP address. The Secondary DNS server will be used
if the Primary DNS server fails to connect.
None
Secondary DNS server The IP address of the secondary DNS Server used by your
network. After entering the DNS Server’s IP address, you can
input the WDR-3124A’s URL (for example,
http://ap11.abc.com) in your browser’
s address field instead of
entering the IP address. The Secondary DNS server will b
e used
if the Primary DNS server fails to connect.
None
IP configuration This field is available in Client-Router mode.
Select DHCP to have the WDR-3124A’s IP address
automatically assigned by a DHCP server on the network.
Select Static to set the WDR-3124A’s IP address manually.
Static
Gateway This field is available in Client-Router mode.
The IP address of the router that connects the
LAN to an outside
network.
None
LAN
LAN
3G
3G
Client-Router
mode
AP mode
