WDR-3124A Web Console Configuration
3-46
Status

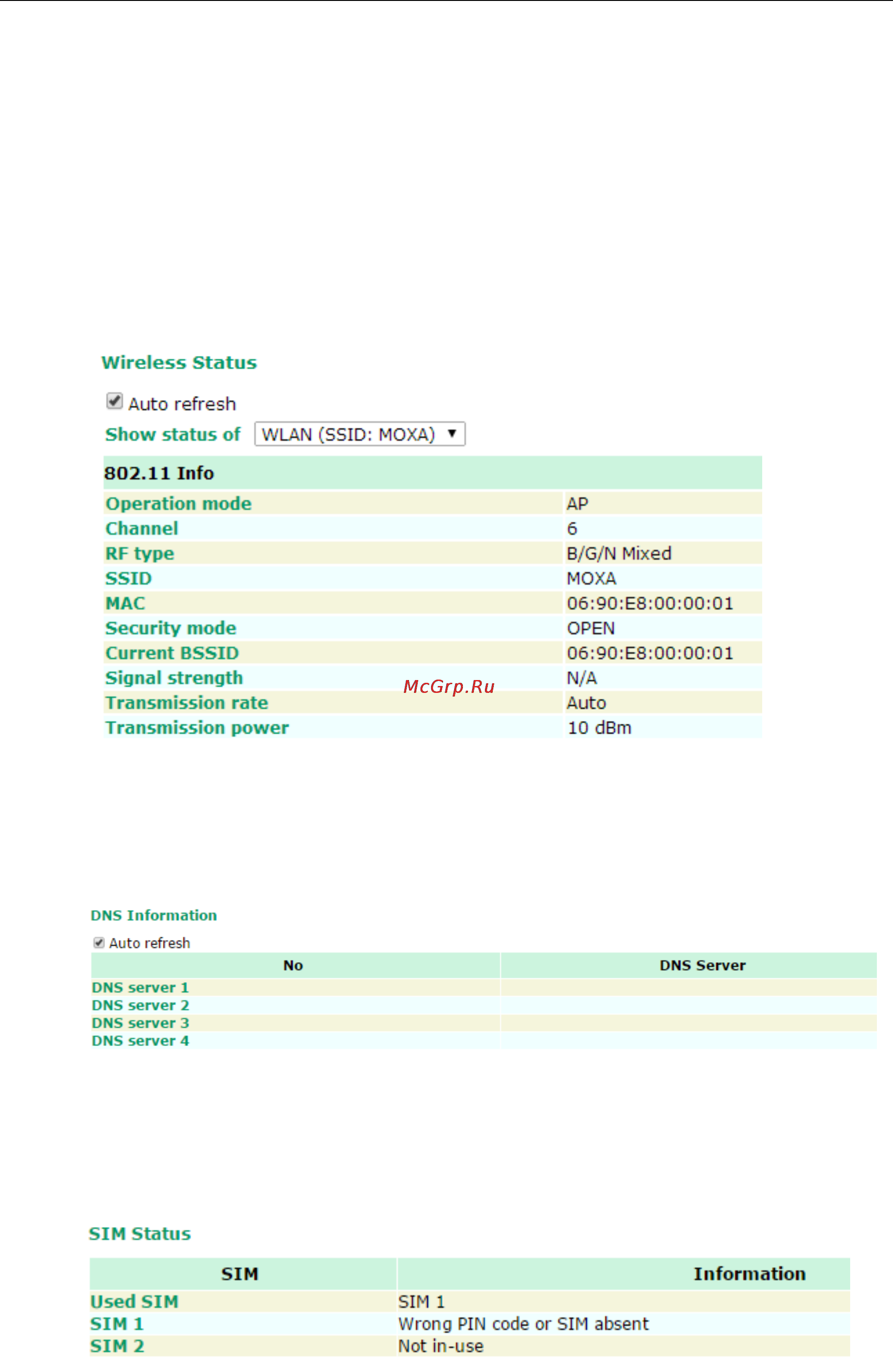

Wireless Status
The status for 802.11 info parameters, such as Operation mode and Channel, are shown on the Wireless
Status page. The status will refresh every 5 seconds if the Auto refresh box is checked.
Certain values for 802.11 info may not show up due to different operation modes. As a result, Current BSSID
and Signal strength are not available in AP mode.
It is helpful to use the continuously updated information on this page, such as Signal strength, to monitor the
signal strength of the WDR-3124A in Client mode.
DNS Information
The DNS information screen displays the DNS server to which the WDR-3124A is connected and the DNS server
information.
SIM Status
The SIM Status screen displays the current SIM card in use and the status of the SIM cards installed in the
WDR-3124A.
