WDR-3124A Web Console Configuration
3-47
GPS Status

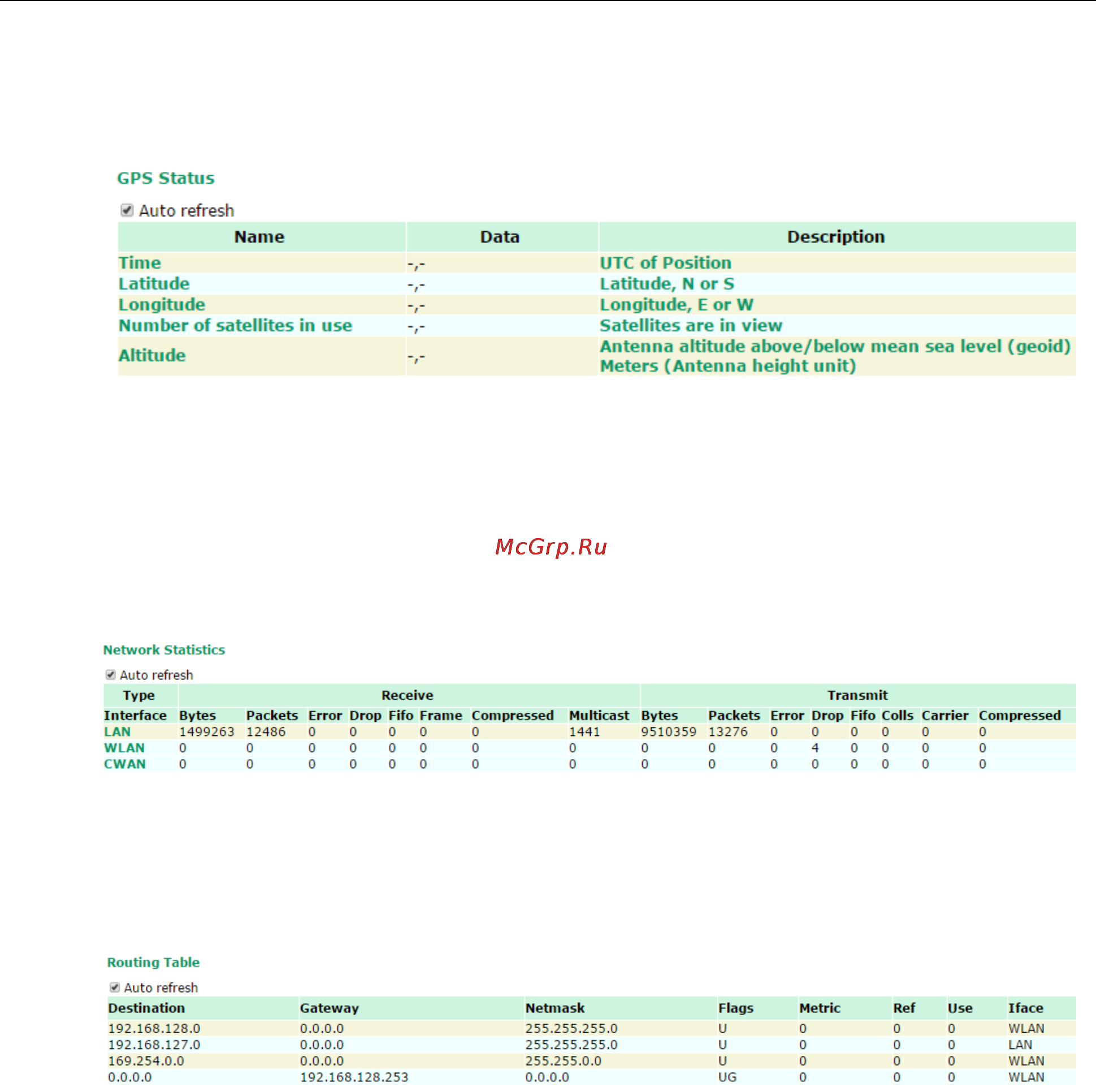

The GPS Status screen displays information of the located GPS.
Network Status
Network Statistics
The Network Statistics screen displays information on each interface.
Routing Table
The Routing Table screen displays the list of routes the WDR-3124A uses to send packets on each interface.
Possible flags include:
U: route is up
D: route is down
G: use gateway
+: default gateway
T: static route
H: target is a host
