Moxa WDR-3124A-EU-T [81/94] Overview
![Moxa WDR-3124A-EU [81/94] Overview](/views2/1201526/page81/bg51.png)
WDR-3124A Software Installation and Configuration
4-2
Overview
The Documentation & Software CD included with your WDR-3124A is designed to make the installation and
configuration procedure easy and straightforward. This auto-run CD includes the Wireless Search Utility (to
broadcast search for all the WDR-3124A’s accessible over the network), the WDR-3124A User’s Manual, and
Quick Installation Guide.
Wireless Search Utility
Installing the Wireless Search Utility

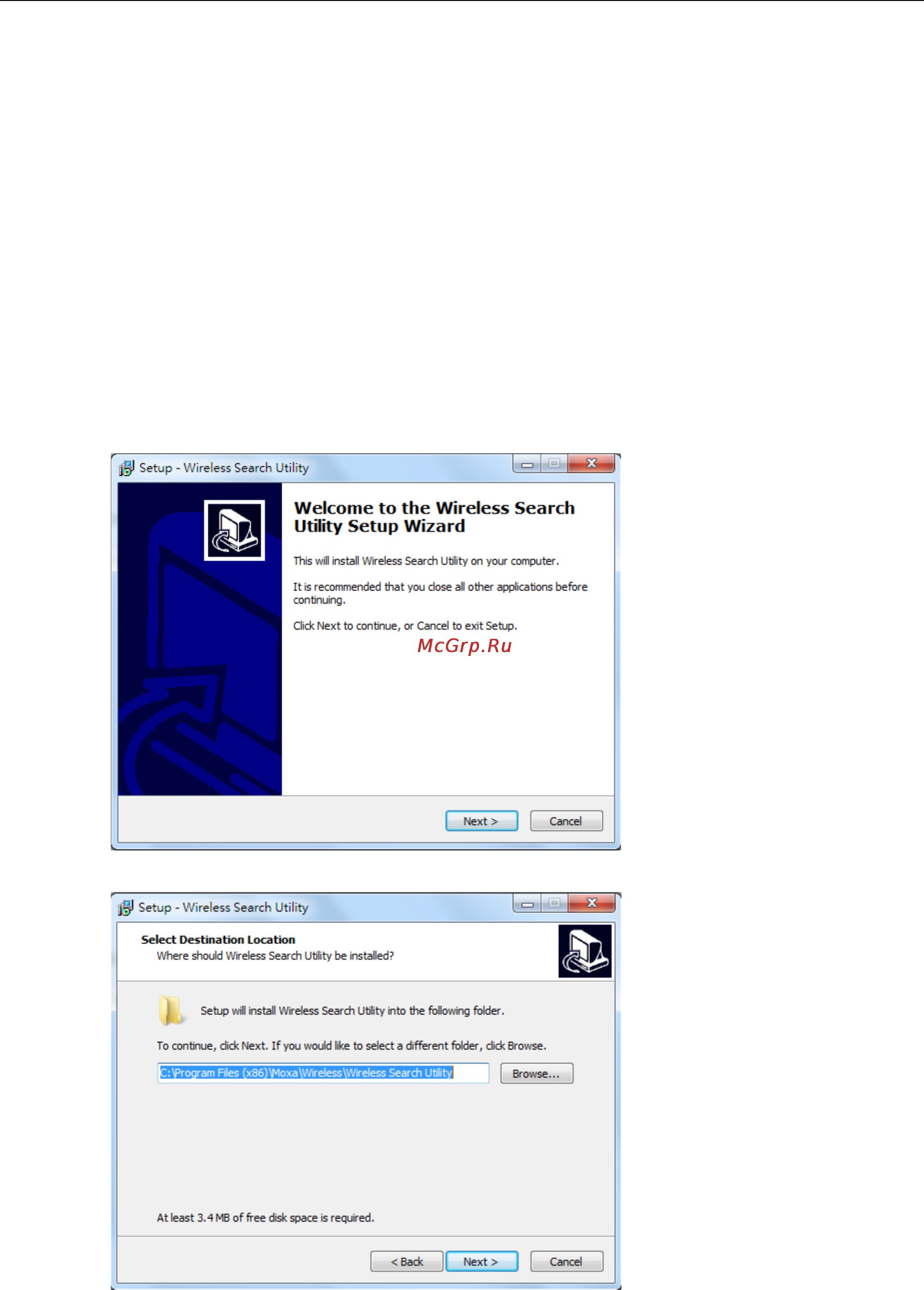

Click the INSTALL UTILITY button in the WDR-3124A Installation CD auto-run window to install the Wireless
Search Utility. Once the program starts running, click Yes to proceed.
1. Click Next when the Welcome screen opens to proceed with the installation.
2. Click Next to install program files to the default directory, or click Browse to select an alternate location.
