WDR-3124A Web Console Configuration
3-33
Configuring IPSec Settings

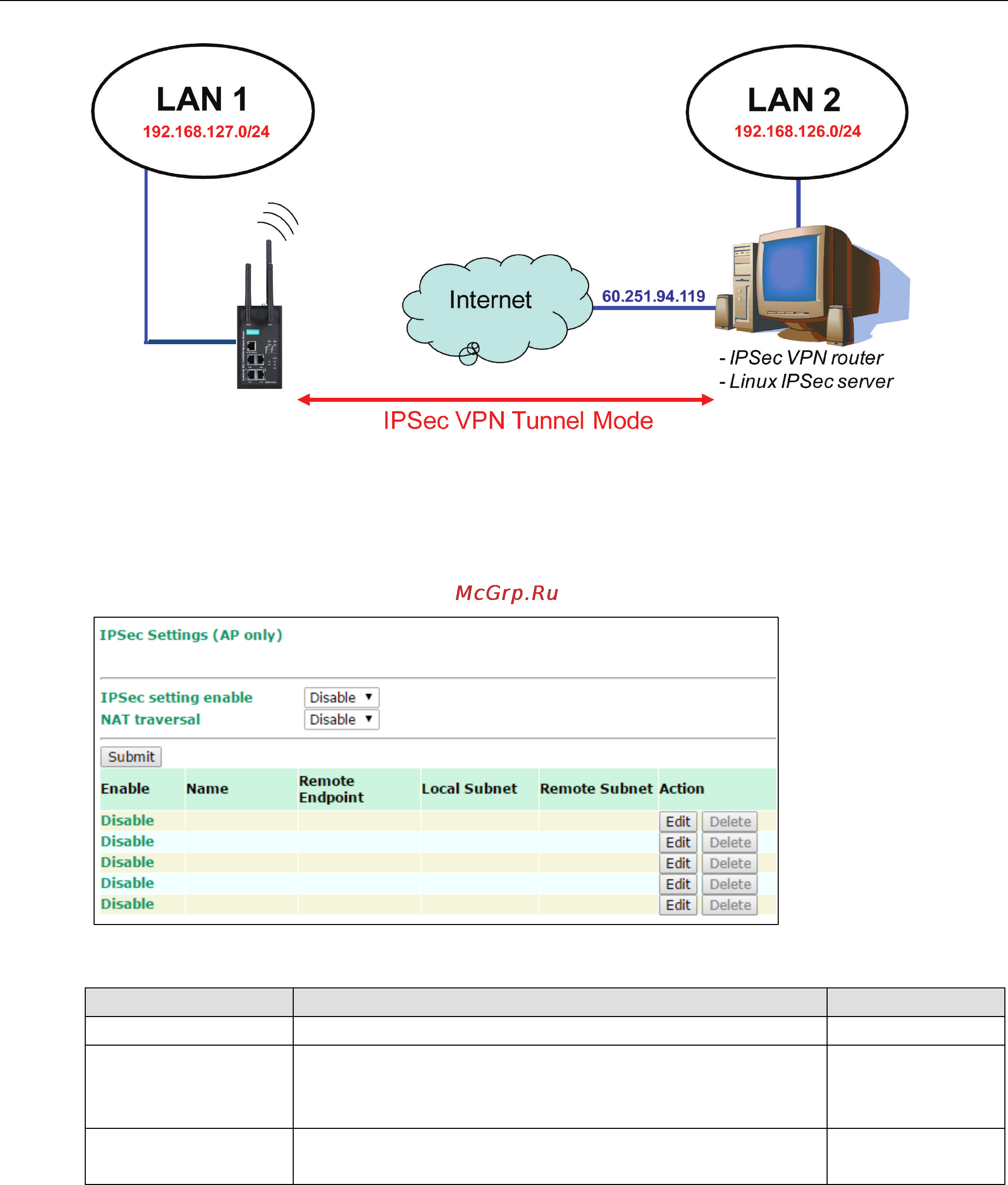

You can enable or disable the IPSec and NAT traversal functions and configure up to five VPN tunnels in the
IPSec Settings screen (click Advanced Settings > VPN > IPSec Settings).
The following table provides the field descriptions.
Field Description Factory Default
IPSec setting enable Select Enable to activate the IPSec feature. Disable
NAT Traversal Select Enable
to activate the NAT traversal feature that allows
IPSec traffic to traverse through NAT-enabled devices.
Make sure that the remote VPN device supports this feature.
Disable
Action Click Edit to configure a VPN tunnel.
Click Delete to remove the selected VPN tunnel.
Dynamic
WAN IP
