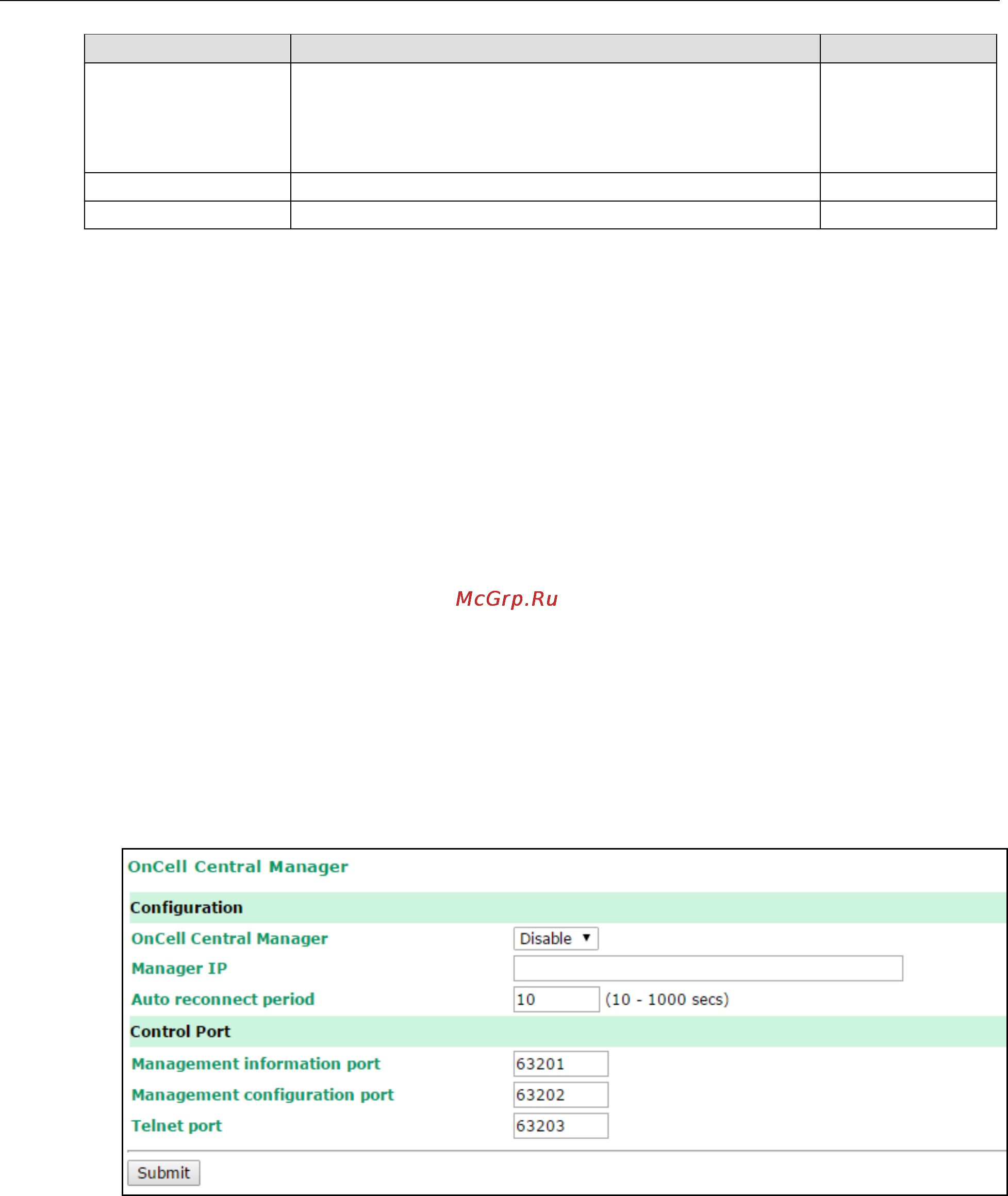

WDR-3124A Web Console Configuration

3-36

Field Description Factory Default

• Restart: Re-establish the VPN tunnel on Start in Initial

mode.

• Restart by Peer: Re-establish the VPN tunnel on Wait for

connecting mode.

DPD delay The period of dead peer detection messages. 30

DPD timeout Timeout to check if the connection is alive or not. 120

Configuring Pre-shared Key Settings

To configure Pre-shared key authentication mode in phase 1 key exchange, in the Tunnel settings screen,

select Pre-shared key from the Authentication mode drop-down list. Then, enter a key in the text field.

Make sure that you configure the same key on the WDR-3124A and the remote VPN gateway.

Configuring RSA Signature Settings

To configure RSA signature settings, complete the following steps:

1. In the Tunnel Settings screen, select RSA Signature from the Authentication mode drop-down list.

2. Generate or import a local private key. Perform one of the following actions:

• Click Generate Local Private Key. The WDR-3124A creates a private key and displays the key

information in the Local private key field.

• Click Import Local Private Key and select a key file to import. After the WDR-3124A successfully

imports the selected key, the system displays the key information in the Local private key field.

3. Generate or import a remote private key. Perform one of the following actions:

• Click Generate Remote Public Key. The WDR-3124A creates a public key and displays the key

information in the Remote public key field.

• Click Import Remote Public Key and select a key file to import. After the WDR-3124A successfully

imports the selected key, the system displays the key information in the Remote public key field.
