VPN Settings

113

DWC-1000 Wireless Controller User’s Guide

name server for name resolution.

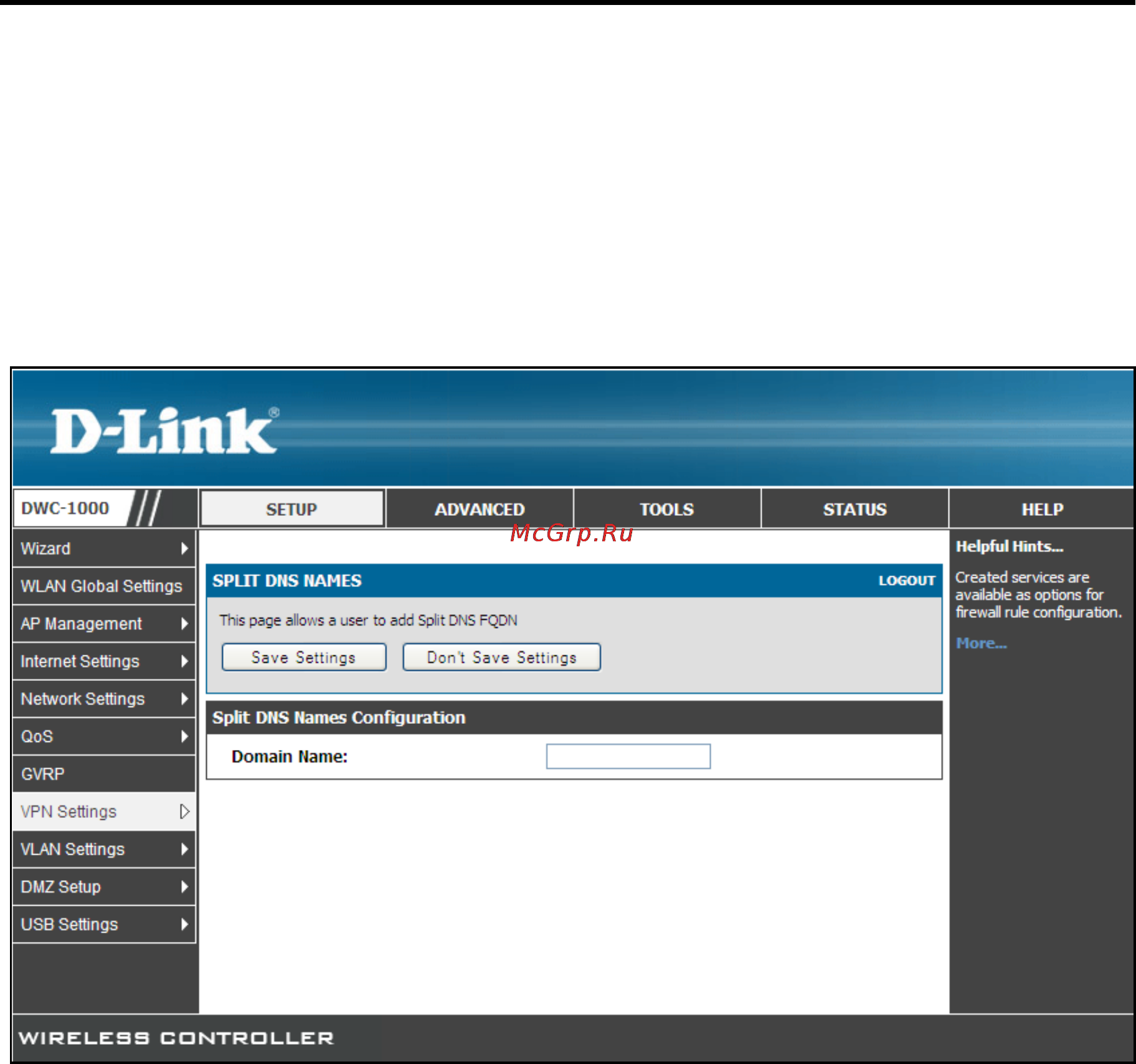

When you click Add, the SPLIT DNS NAMES page appears. Enter a Domain Name in the

Domain Name field and click Save Settings.

The Split DNS Name section provides Edit and Delete buttons for changing or deleting

split DNS name configurations.
