D-Link DWC-1000 [74/246] Editing static routes

Advanced Configuration Settings

DWC-1000 Wireless Controller User’s Guide

Editing Static Routes

Path: ADVANCED > Routing > Static Routing

After you add static routes, you can edit it if you need to change settings.

To edit a static route:

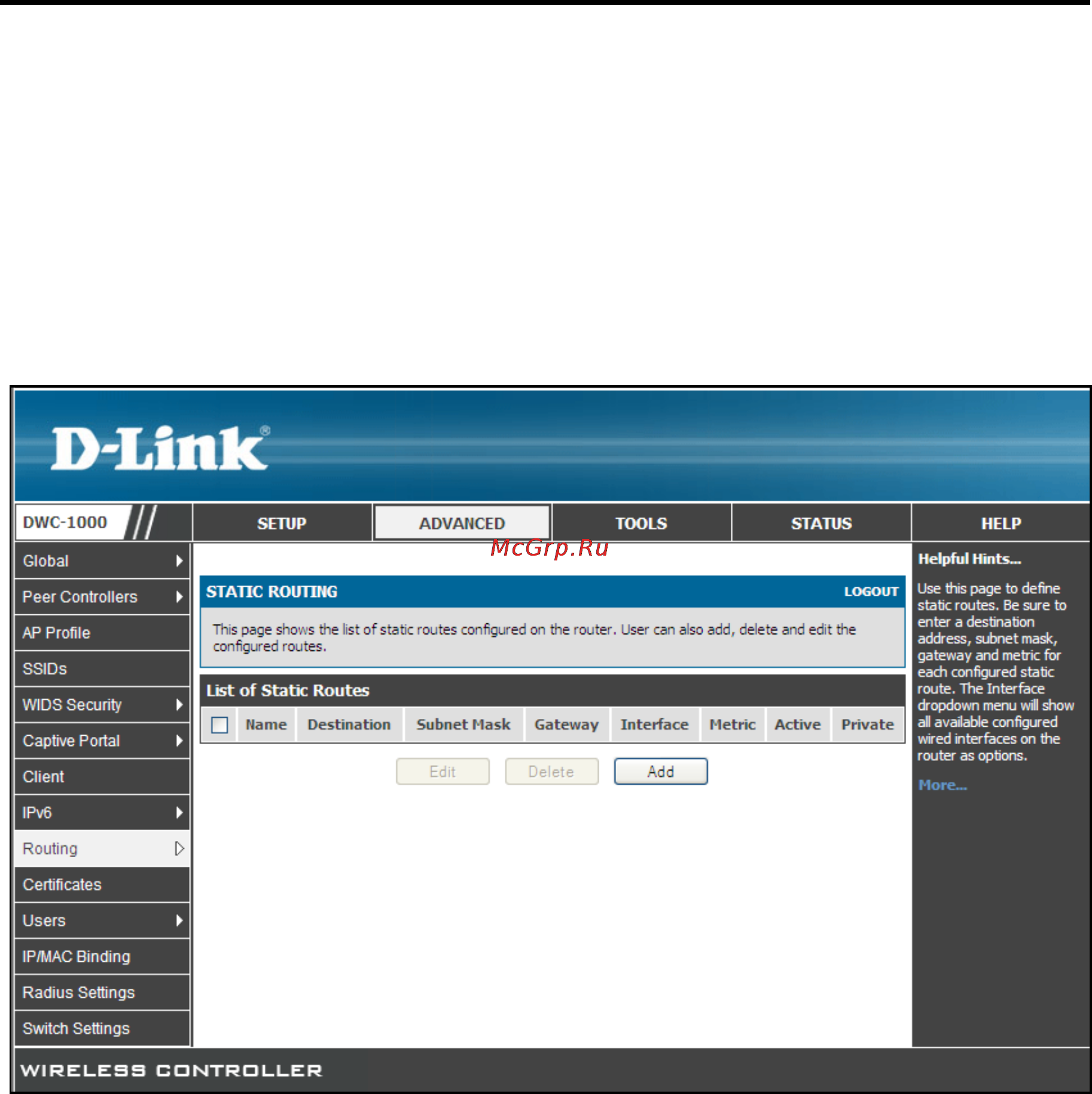

1. Click ADVANCED > Routing > Static Routing. The STATIC ROUTING page appears.

2. Under List of available static routes, click the static route you want to edit and click Edit.

3. Change the desired settings (see Table 4-4 on page 73).

4. Click Save Settings.
