DWC-1000 Wireless Controller User’s Guide

Enabling IPsec Policies

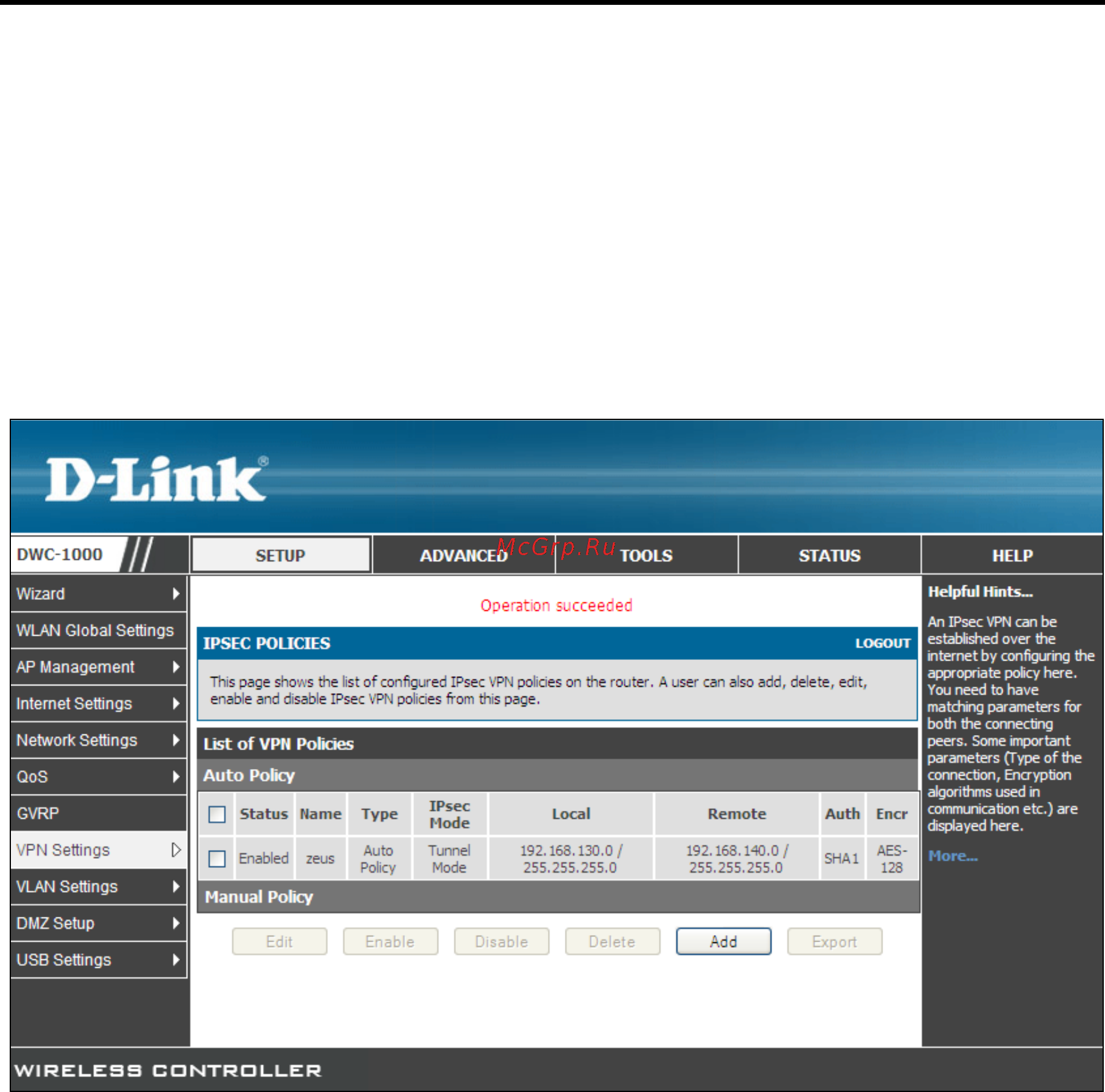

Path: SETUP > VPN Settings > IPsec > IPsec Policies

To enable an IPsec policy:

1. Click SETUP > VPN Settings > IPsec > IPsec Policies. The IPSEC POLICIES page

appears.

2. Under List of VPN Policies, check the IPsec auto policy or manual policy you want to

enable and click Enable.
