D-Link DWC-1000 [153/246] Access point summary

Viewing Status and Statistics

153

DWC-1000 Wireless Controller User’s Guide

Access Point Summary

Path: STATUS > Access Points Info > APs Summary

The ACCESS POINTS SUMMARY page shows summary information about managed,

failed, and rogue access points the wireless controller has discovered or detected. Status

entries can be deleted manually.

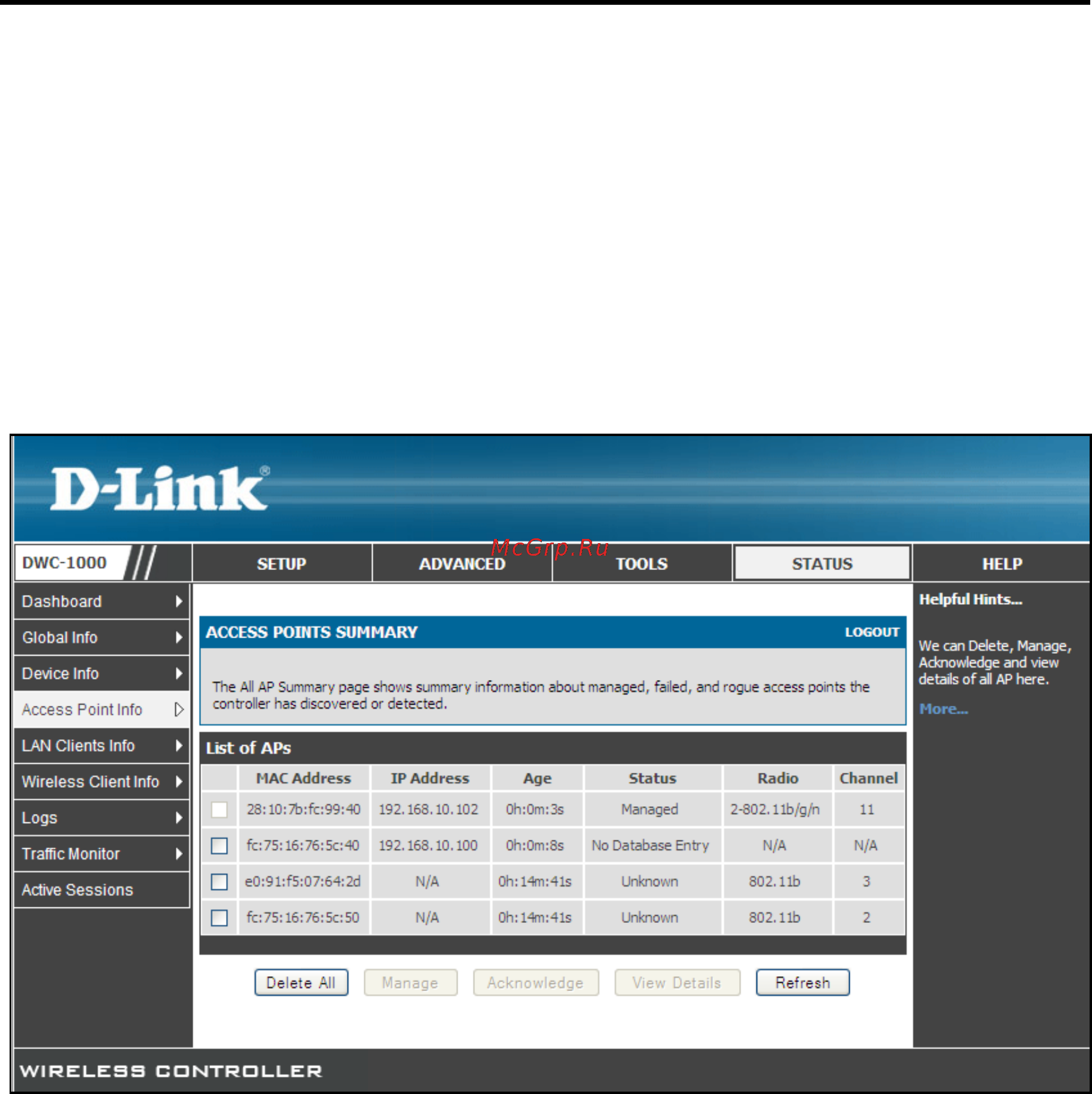

Figure 7-15. ACCESS POINTS SUMMARY Page
