Viewing Status and Statistics

148

DWC-1000 Wireless Controller User’s Guide

LAN Clients

Path: STATUS > LAN Clients Info > LAN Clients

LAN clients to the wireless controller are identified by an address resolution protocol (ARP)

scan through the LAN controller. The LAN CLIENTS page shows the:

 NetBios name (if available)

 IP address of discovered LAN hosts

 MAC address of discovered LAN hosts

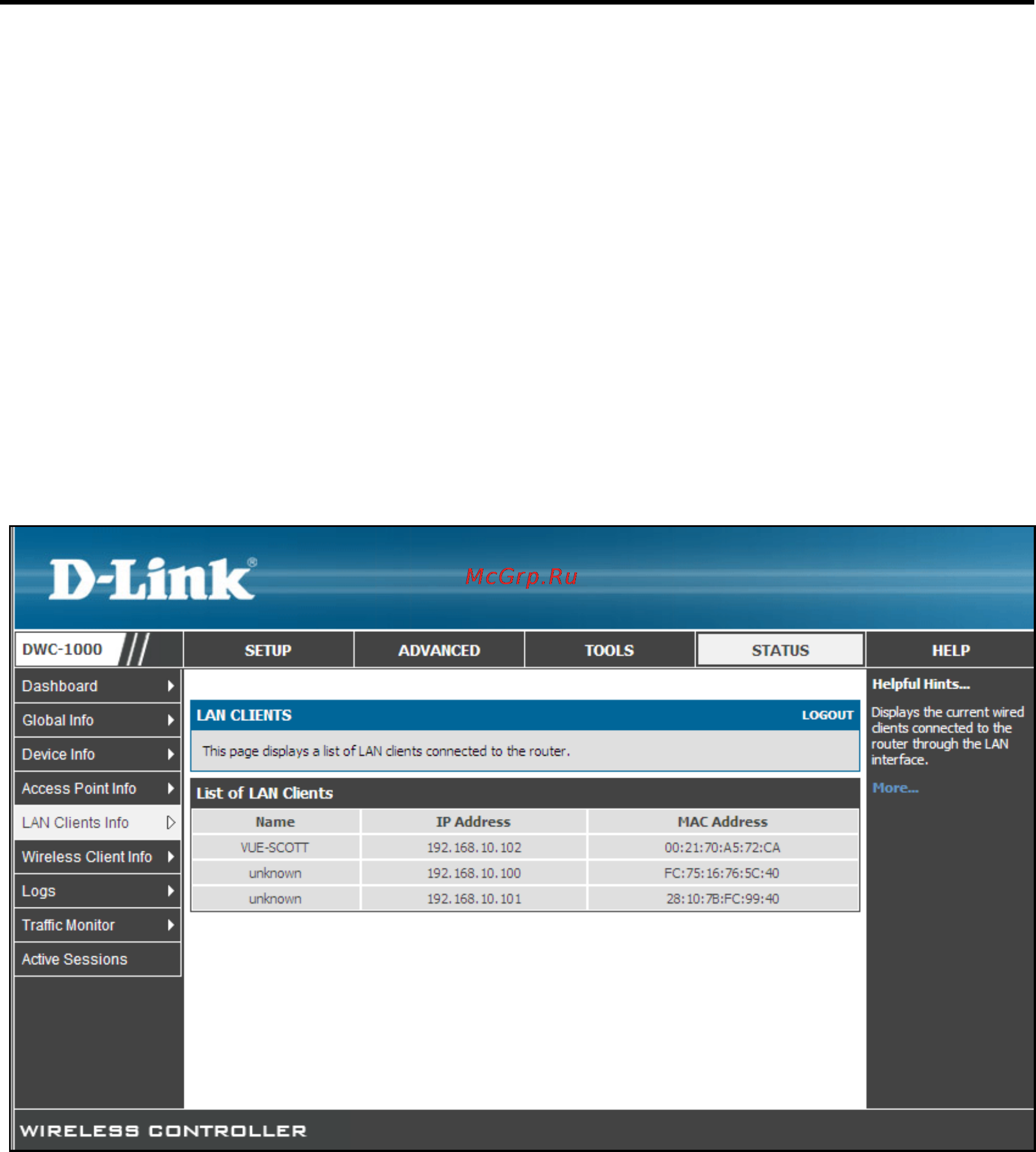

Figure 7-12. LAN CLIENTS Page
