D-Link DWC-1000 [75/246] Deleting static routes

Advanced Configuration Settings

DWC-1000 Wireless Controller User’s Guide

Deleting Static Routes

Path: ADVANCED > Routing > Static Routing

If you no longer need a static route, you can delete it.

Note: A precautionary message does not appear before you delete a static route. Therefore,

be sure you do not need a static route before you delete it.

To delete a static route:

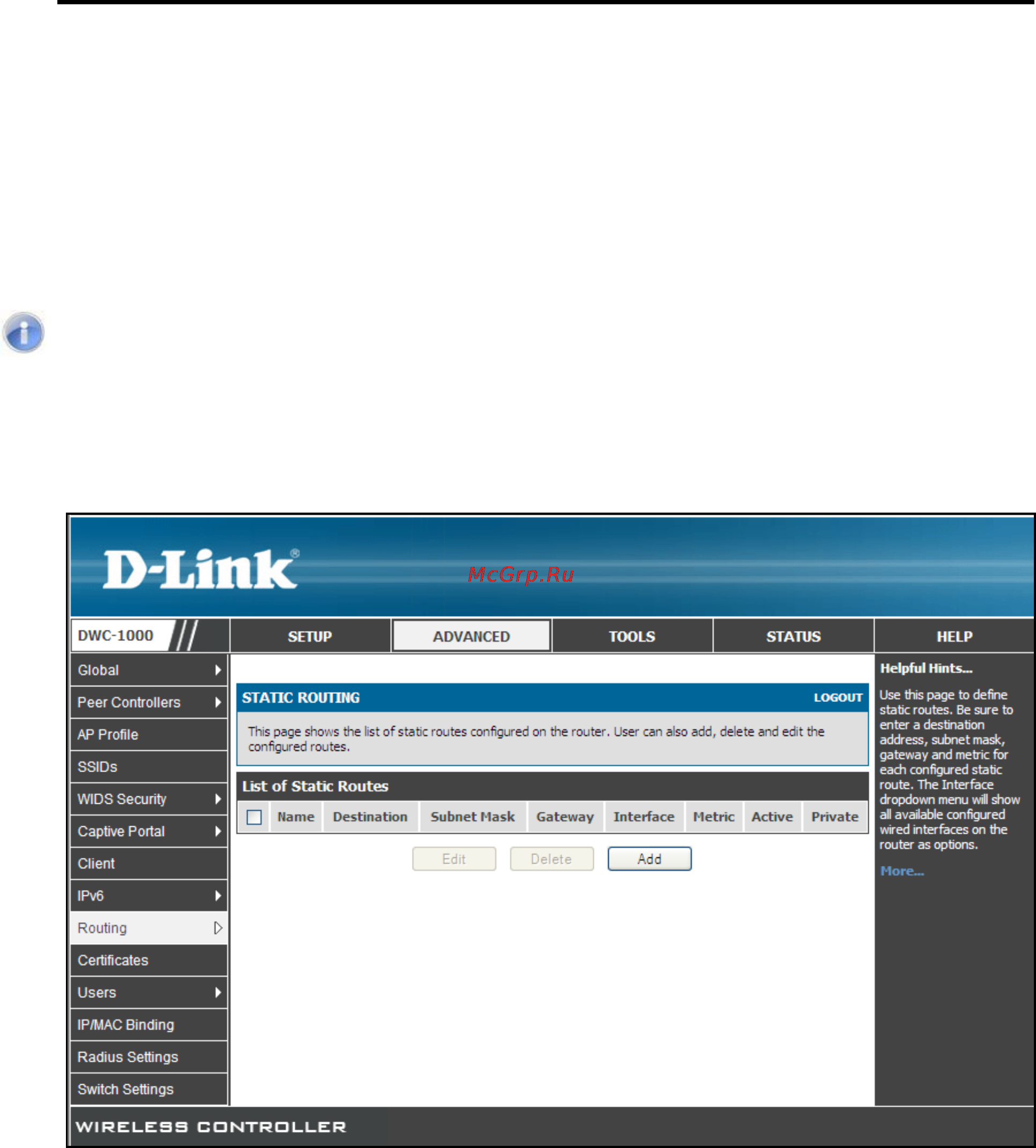

1. Click ADVANCED > Routing > Static Routing. The STATIC ROUTING page appears.

2. Under List of available Static Routes, click the static route you want to delete. (Or click

the box next to Name to select all static routes.)

3. Click Delete. The selected static route is deleted.
