D-Link DWC-1000 [202/246] Editing users

Maintenance

202

DWC-1000 Wireless Controller User’s Guide

Editing Users

Path: ADVANCED > Users > Users

There may be times when you need to edit a user. For example, you might want to change

the user’s login password or idle timeout.

To edit a user:

1. Click ADVANCED > Users > Users. The USERS page appears.

2. Check the box next to the user you want to edit.

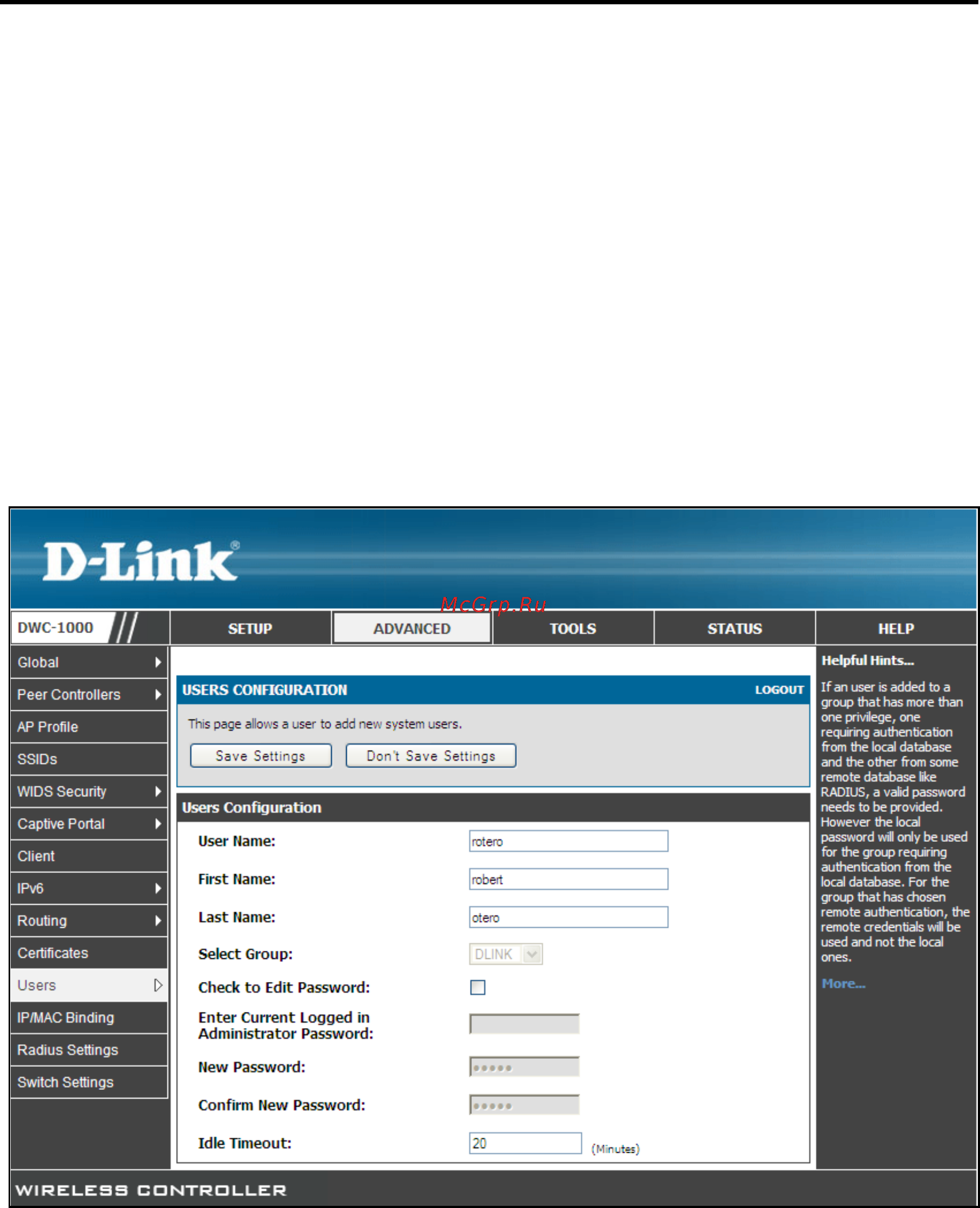

3. Click the Edit button. The USERS CONFIGURATION page appears.

4. Complete the fields in the page (see Table 8-5) and click Save Settings.
