D-Link DWC-1000 [171/246] Configuration receive status

Viewing Status and Statistics

171

DWC-1000 Wireless Controller User’s Guide

Configuration Receive Status

Path: STATUS > Global Info > Config Receive Status

The Peer Controller Configuration feature lets you send a wireless configuration from one

wireless controller to all other controllers. In addition to keeping the controllers synchronized,

this function lets you manage all wireless controllers in the cluster from one controller. The

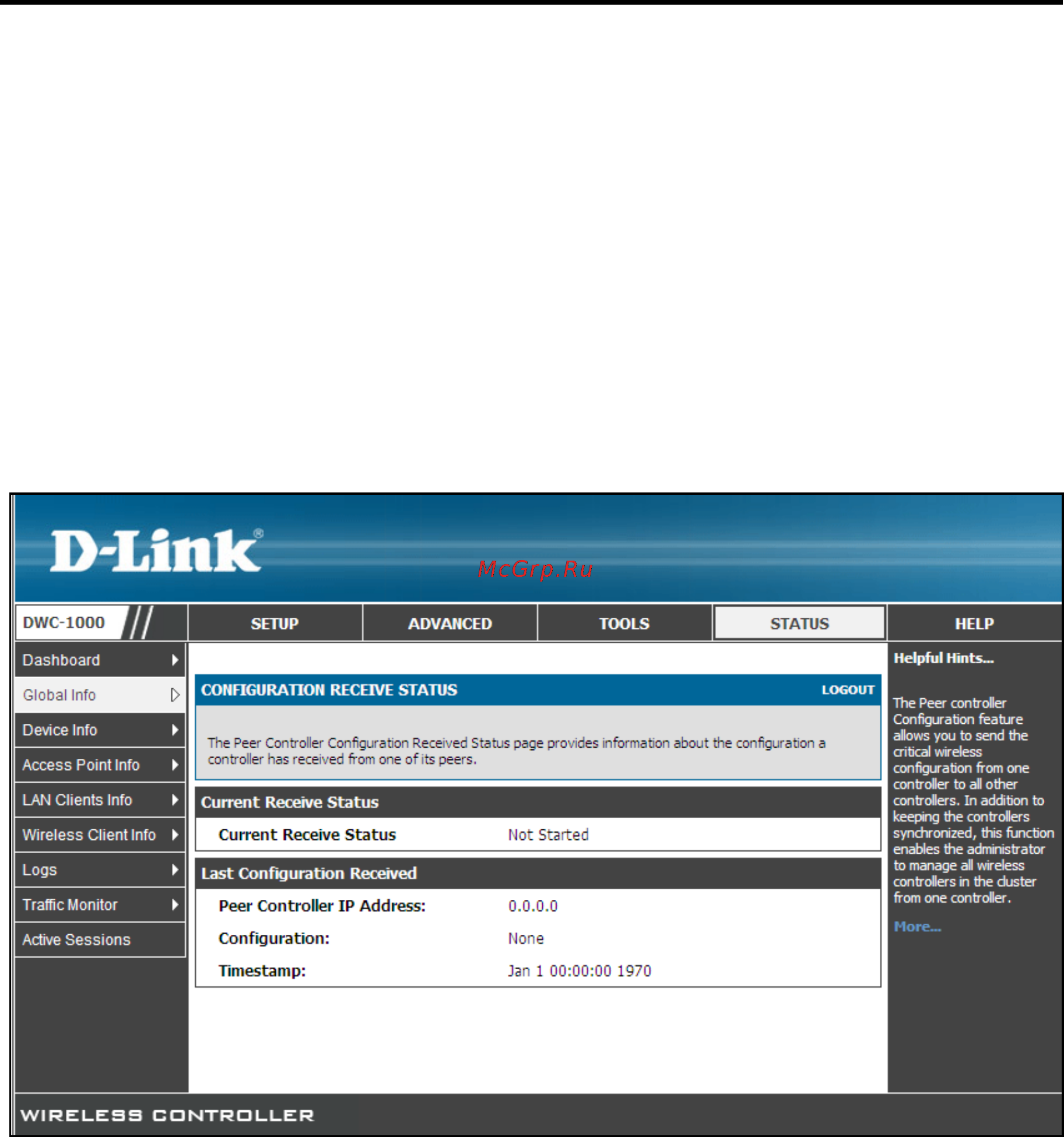

CONFIGURATION RECEIVE STATUS page provides information about the configuration a

controller has received from one of its peers.
