Basic Configuration
49
DWC-1000 Wireless Controller User’s Guide
c. Complete the fields (see Table 3-8) and click Save Settings. The message Operation

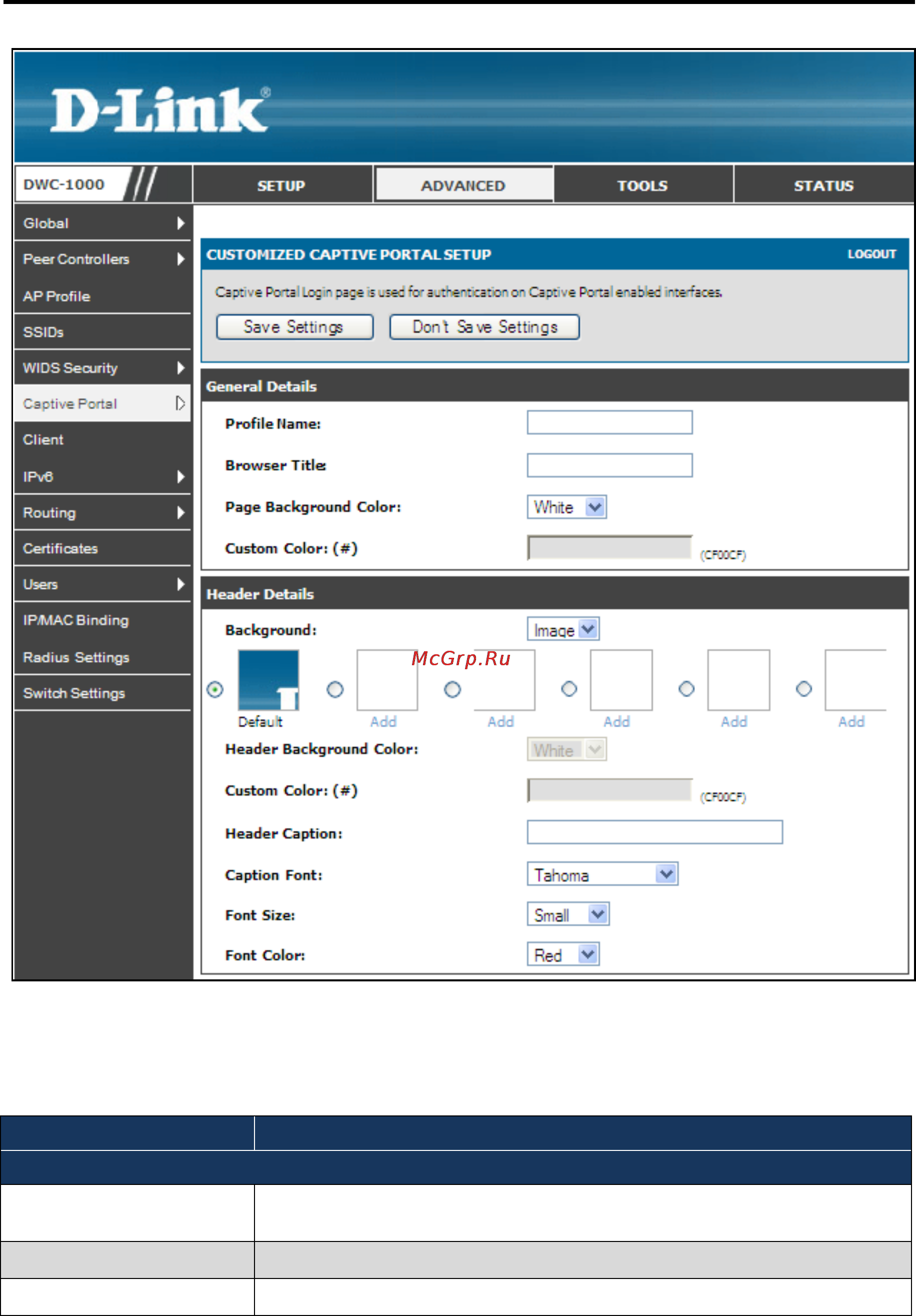

Succeeded appears and then the CAPTIVE PORTAL SETUP PAGE appears.
Table 3-8. Fields on the CUSTOMIZED CAPTIVE PORTAL SETUP Page
Field
Description
General Details
Profile Name
Enter a name for this captive portal profile. The name should allow you to differentiate this
captive profile from others you may set up.
Browser Title
Enter the text that will appear in the title of the browser during the captive portal session.
Page Background Color
Select the background color of the page that appears during the captive portal session.
