Maintenance
205
DWC-1000 Wireless Controller User’s Guide
Restoring Configuration Settings
Path: TOOLS > System
After you use the procedure on the previous page to back up a wireless controller’s
configuration settings, you can restore the settings using the following procedure.

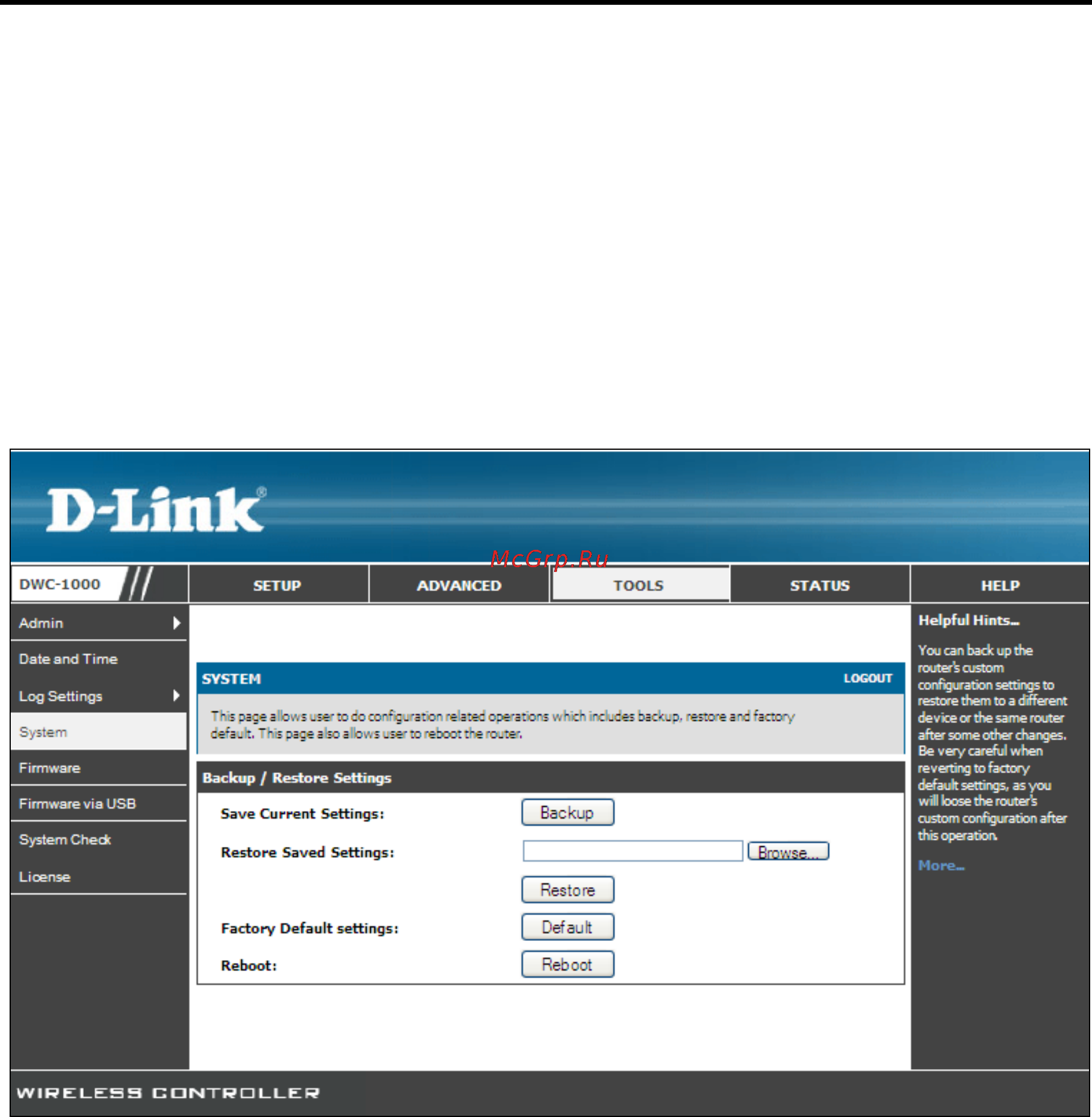

1. Click TOOLS > System. The SYSTEM page appears.
2. In the Restore Saved Settings field, either:
– Enter the complete path where the backup file is located.
– Click the Browse button. Use the Choose file dialog box to find the backup file. Then
click the file and click Open.
3. Click the Restore button. A message appears.
4. Click OK to close the message and restore the configuration settings from the selected file.
