D-Link DWC-1000 [184/246] Detected client status

Viewing Status and Statistics

184

DWC-1000 Wireless Controller User’s Guide

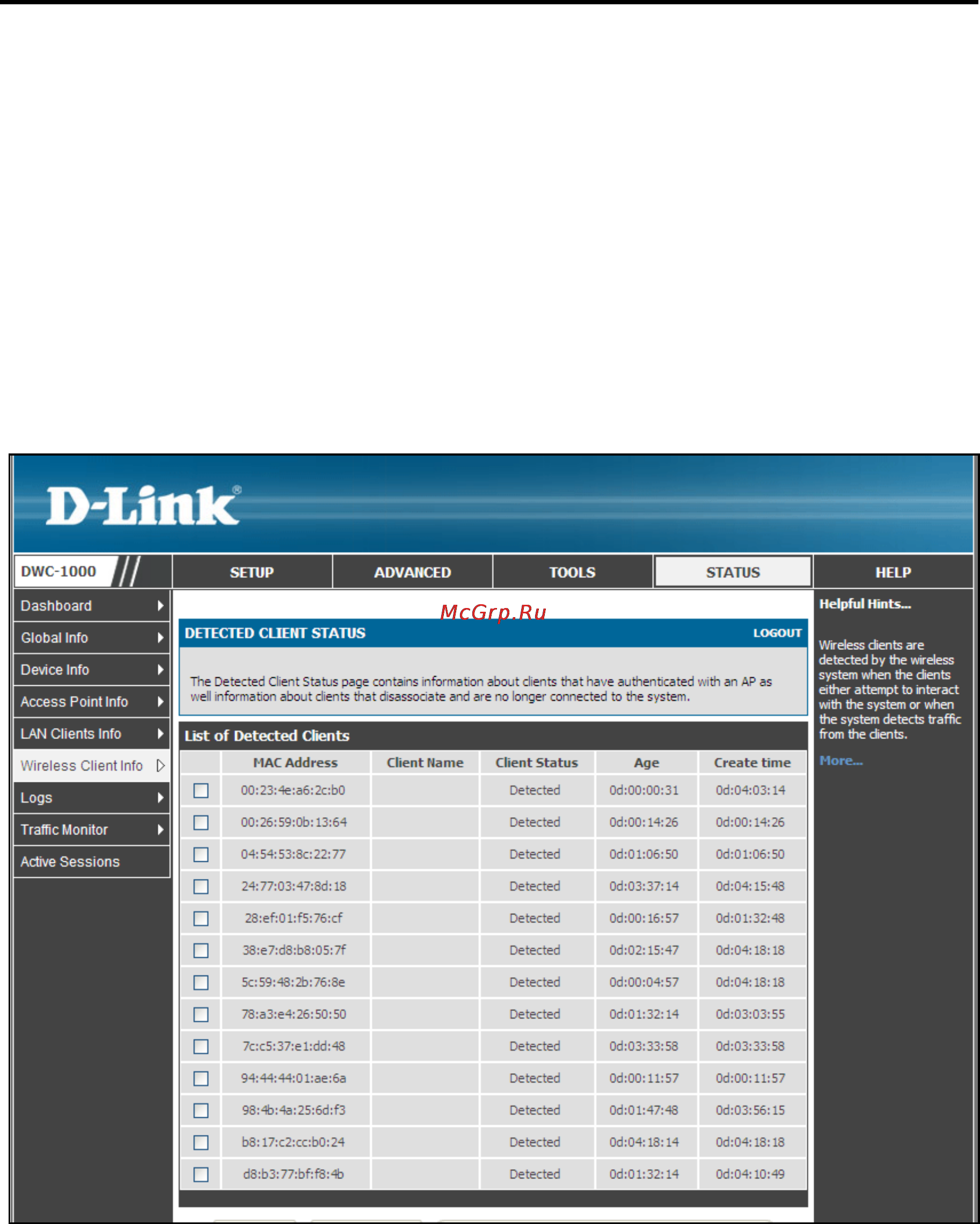

Detected Client Status

Path: STATUS > Wireless Client Info > Detected Clients

Wireless clients are detected by the wireless system when the clients attempt to interact with

the system or when the system detects traffic from the clients. The DETECTED CLIENT

STATUS page shows information about clients that have authenticated with an access point,

as well information about clients that disassociate and are no longer connected to the

system.
