D-Link DWC-1000 [201/246] Importing users

Maintenance

201

DWC-1000 Wireless Controller User’s Guide

Importing Users

Path: ADVANCED > Users > Get Users DB

A faster alternative to adding individual users is to import users from a CSV-formatted file.

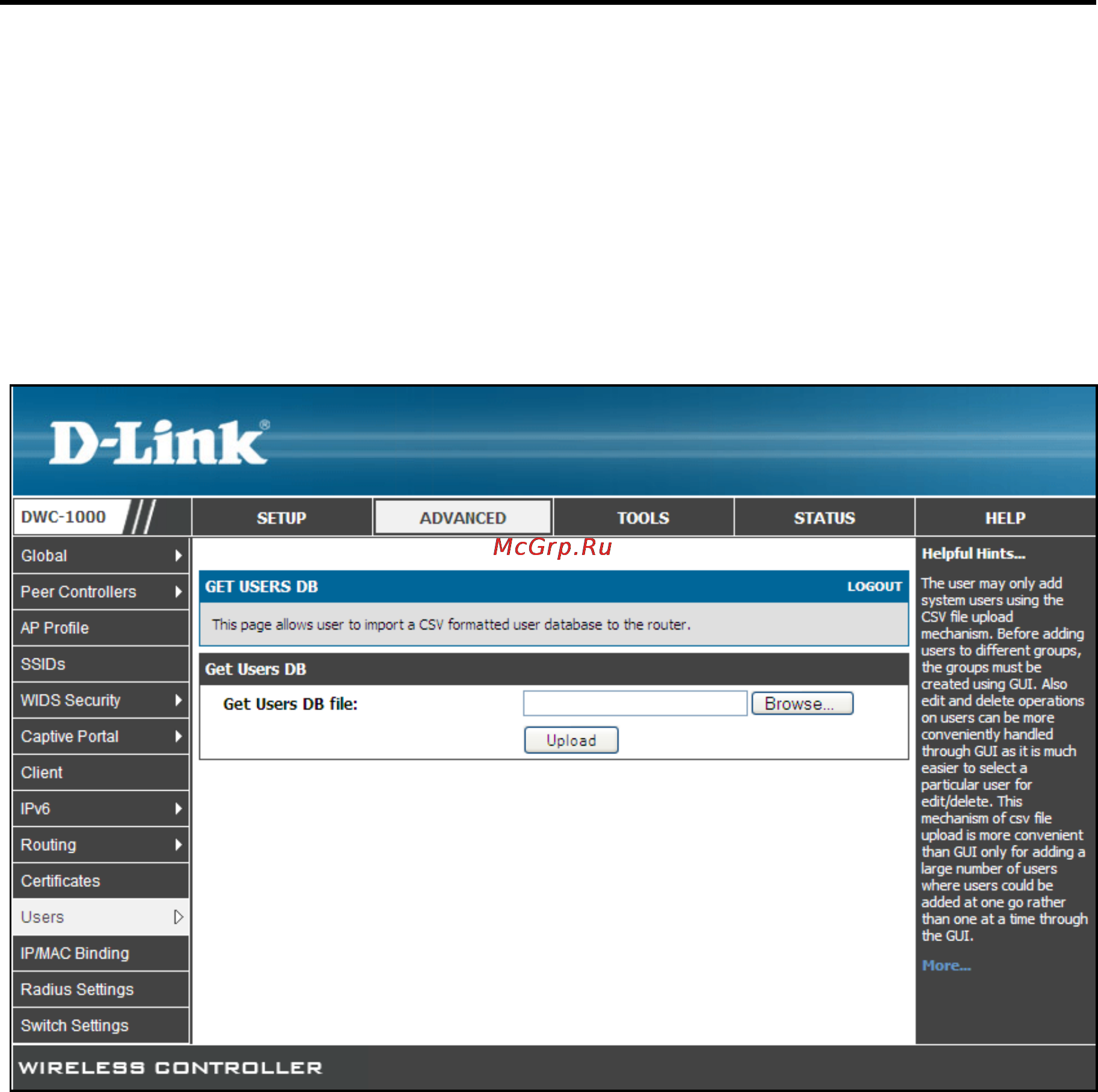

1. Click ADVANCED > Users > Get Users DB. The GET USERS DB page appears.

2. Click the Browse button.

3. In the Choose File dialog box, navigate to the location of the CSV file, and then click the

file and click Open.

4. Click Upload.
