D-Link DWC-1000 [221/246] Performing dns lookups

Troubleshooting

221

DWC-1000 Wireless Controller User’s Guide

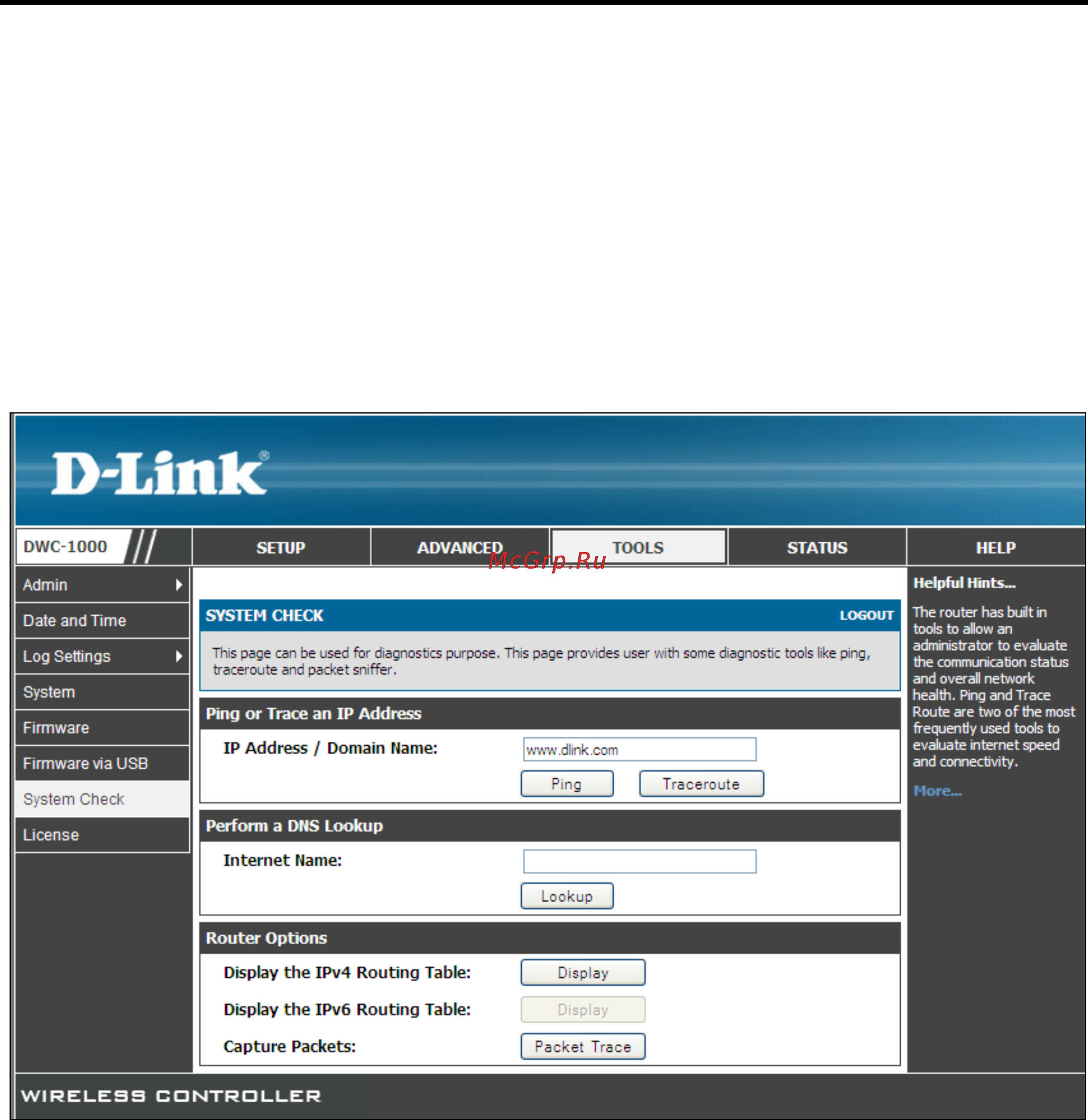

Performing DNS Lookups

Path: TOOLS > System Check

The wireless controller provides a DNS lookup function that lets you retrieve the IP address

of a Web, FTP, Mail, or any other server on the Internet.

1. Click TOOLS > System Check. The SYSTEM CHECK page appears.

2. Under Perform a DMS Lookup, in the Internet Name field, enter an Internet name.

3. Click Lookup. The results appear in the Command Output page. If the host or domain

entry exists, a response appears with the IP address. If the message Host Unknown

appears, the Internet name does not exist.

4. Click Back to return to the SYSTEM CHECK page.
