Troubleshooting

220

DWC-1000 Wireless Controller User’s Guide

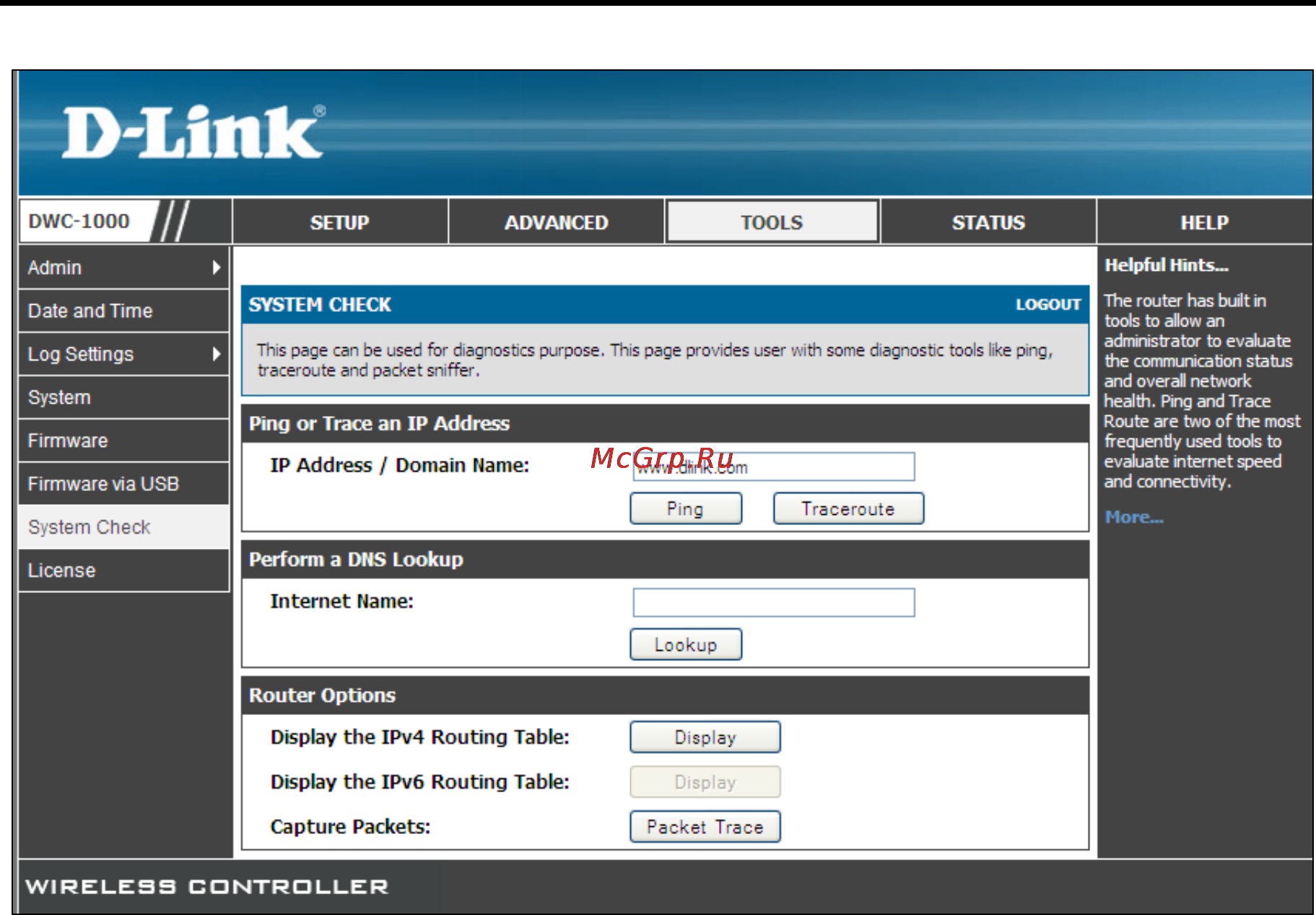

2. Under Ping or Trace an IP Address, in the IP Address / Domain Name field, enter an IP

address.

3. Click Traceroute. The results appear in the Command Output page.

4. Click Back to return to the SYSTEM CHECK page.
