D-Link DWC-1000 [145/246] Sessions through the wireless controller

Viewing Status and Statistics

145

DWC-1000 Wireless Controller User’s Guide

Field

Description

Bytes Transmitted

Number of bytes transmitted to the client station.

Bytes Received

Number of bytes received by the client station.

Sessions through the Wireless Controller

Path: STATUS > Active Sessions

The ACTIVE SESSIONS page shows the following information about the active Internet

sessions through the wireless controller:

 Local and remote IP addresses

 Protocol used during the Internet sessions

 State

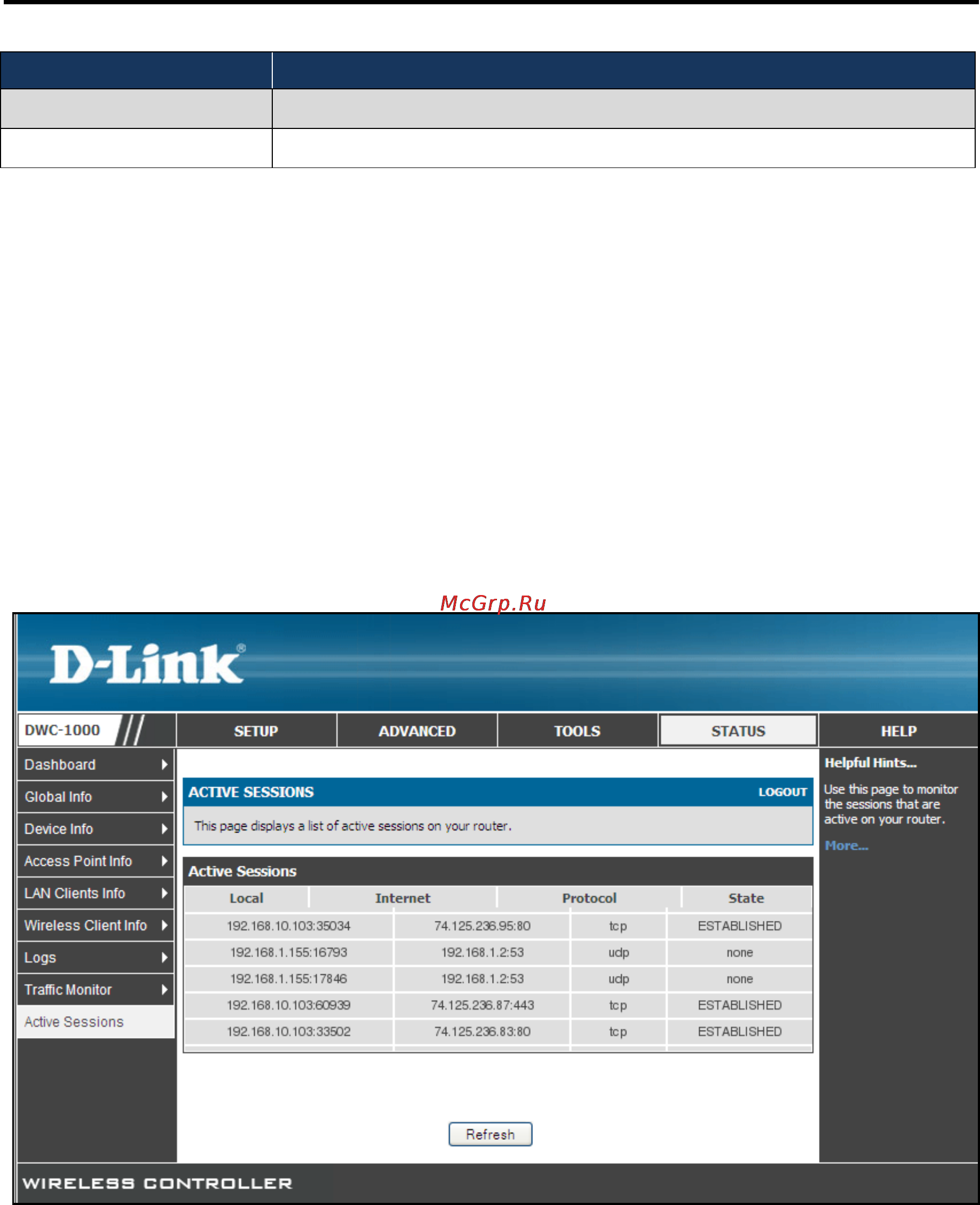

Figure 7-10. ACTIVE SESSIONS Page
