D-Link DWC-1000 [32/246] Basic configuration procedures
![D-Link DWC-1000 [32/246] Basic configuration procedures](/views2/1203423/page32/bg20.png)
Basic Configuration
32
DWC-1000 Wireless Controller User’s Guide

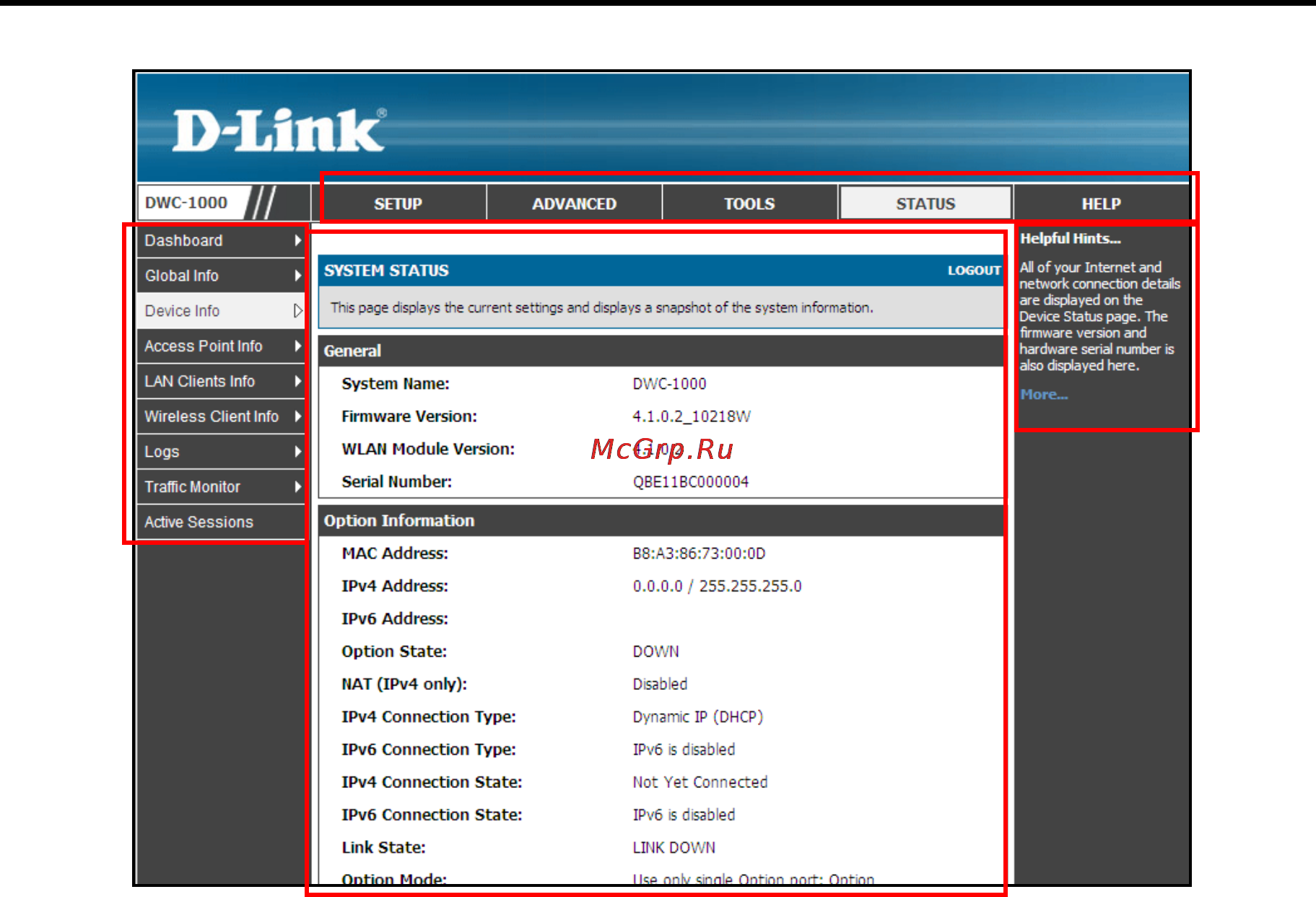

Figure 3-1. Web Management Interface
Basic Configuration Procedures
To perform a basic configuration:
Basic Configuration Step #1. Enable DHCP Server (Optional) – see page 33.
Basic Configuration Step #2. Select the Access Points to be Managed – see page 34.
Basic Configuration Step #3. Change the SSID Name and Set Up Security – see page 36.
Basic Configuration Step #4. Confirm Access Point Profile is Associated – see page 42.
Basic Configuration Step #6. Use SSID with RADIUS – see page 51.
Basic Configuration Step #5. Configure Captive Portal Settings – see page 43.
Main Navigation
Menu Tab
Workspace
Configuration
Menu Tab
Helpful
Hints
