Basic Configuration
42
DWC-1000 Wireless Controller User’s Guide
Basic Configuration Step #4. Confirm Access Point Profile is Associated
Use the following procedure to confirm that the access point profile is associated with the
wireless controller.
Tip: Each time you change configuration settings, perform this procedure to apply
the changes to the access point.

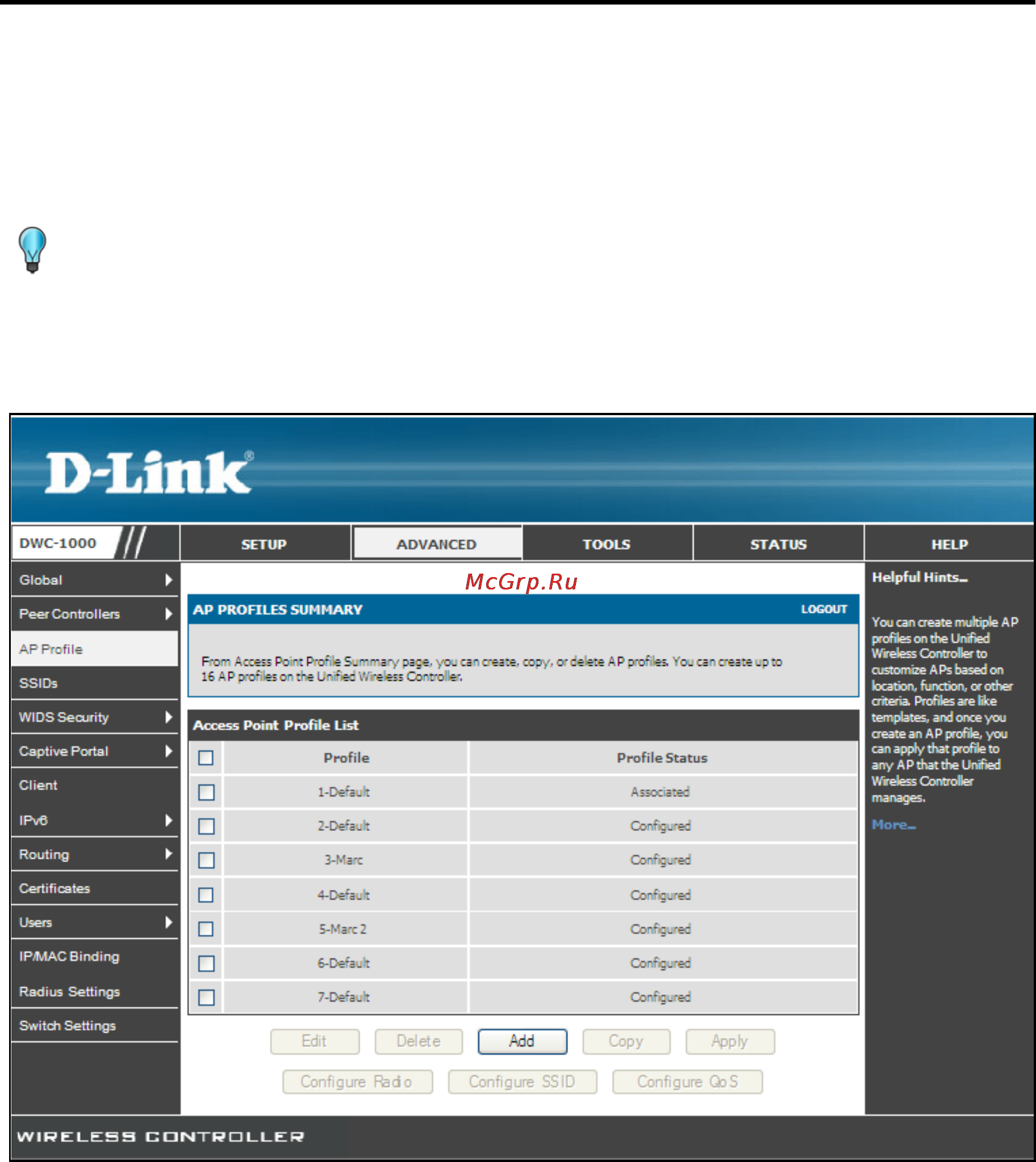

1. Click ADVANCED > AP Profile. The AP PROFILES SUMMARY page appears.
2. Under Access Point Profile List, check the box to the left of the access point profile you
want to update.
3. Click Apply.
4. Wait 30 seconds, and then click Refresh to verify that the profile is associated. Your
associated access point is configured and ready to authenticate wireless users.
