D-Link DWC-1000 [61/246] Complete the fields in the page see table 4 1

Advanced Configuration Settings

DWC-1000 Wireless Controller User’s Guide

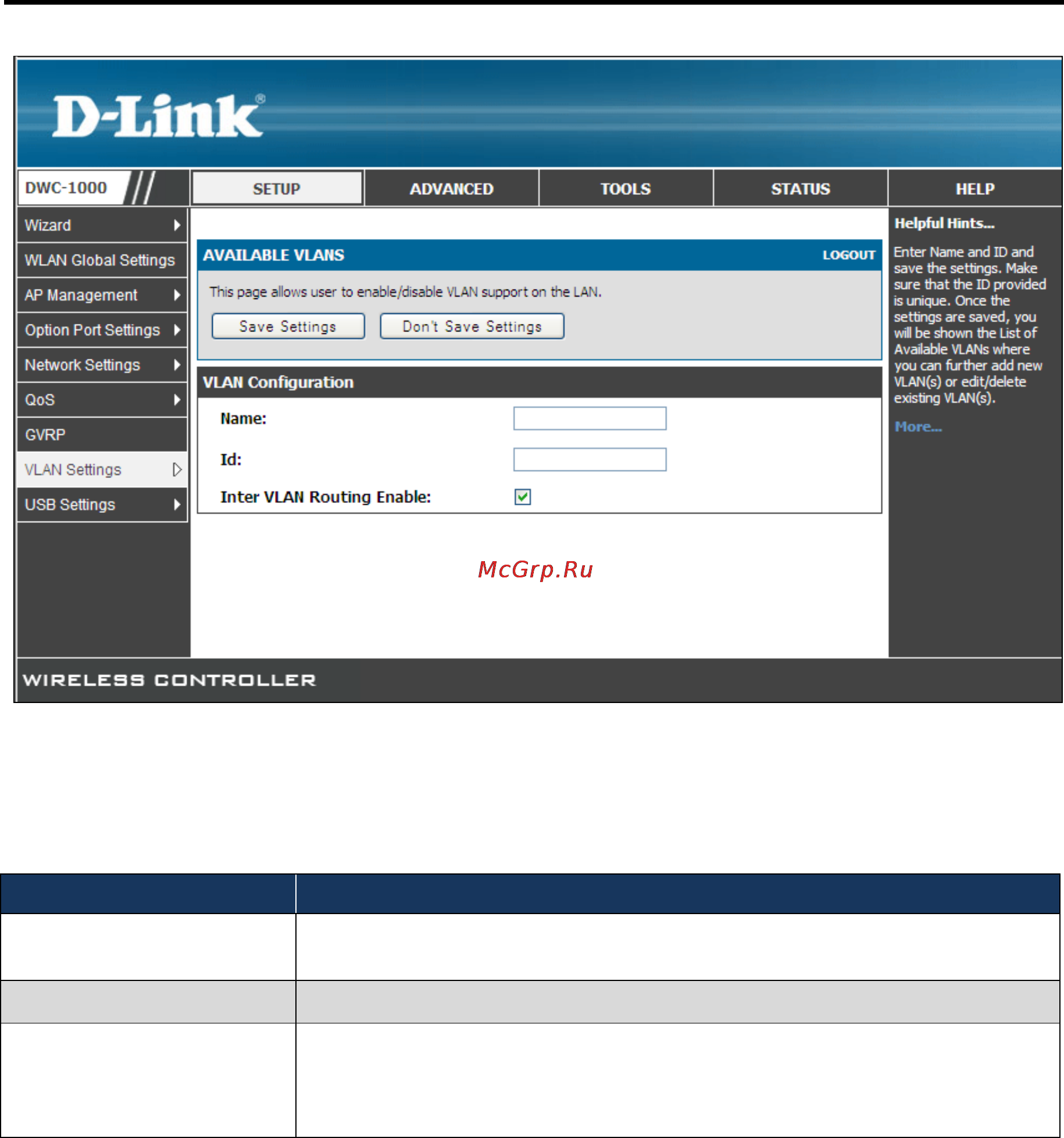

3. Complete the fields in the page (see Table 4-1).

4. Click Save Settings.

Table 4-1. Fields on the AVAILABLE VLANS Page

Field

Description

Name

Enter a unique name for this VLAN. The name should allow you to easily identify this VLAN from

others you may add.

Enter a unique ID to this VLAN. Range: 2 - 4093

Inter VLAN Routing Enable

Allows or denies communication between VLAN networks. Choices are:

 Checked = allow communications between different VLANs.

 Unchecked = deny communications between different VLANs.
