D-Link DWC-1000 [151/246] Access point status

Viewing Status and Statistics

151

DWC-1000 Wireless Controller User’s Guide

Access Point Status

Path: STATUS > Dashboard > Access Point

The ACCESS POINT page shows summary information about managed, failed, and rogue

access points the wireless controller has discovered or detected. A pie chart at the bottom of

the page provides a graphical representation of the total access point utilization.

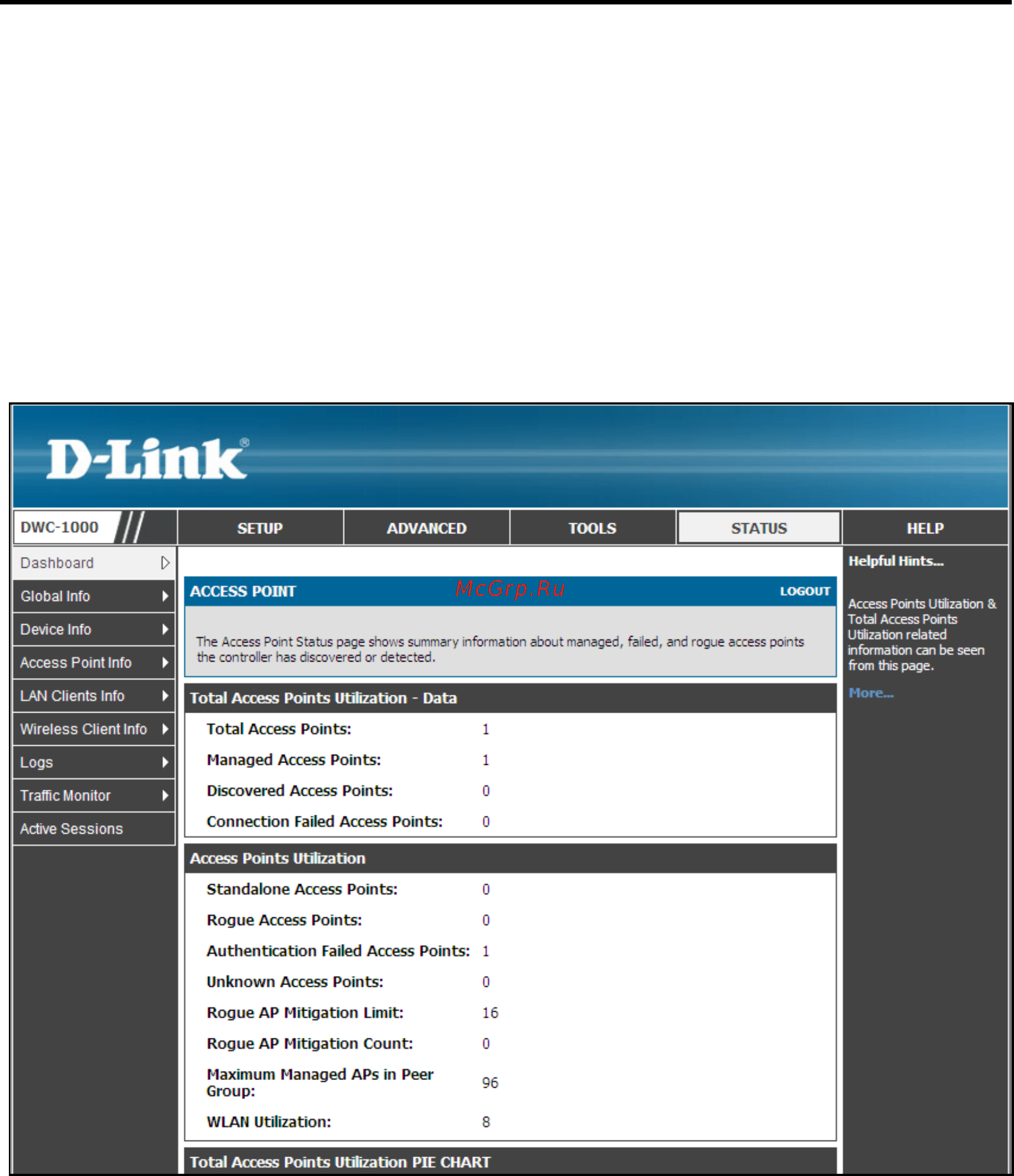

Figure 7-14. ACCESS POINT Page
