Troubleshooting
227
DWC-1000 Wireless Controller User’s Guide
Remote Logging

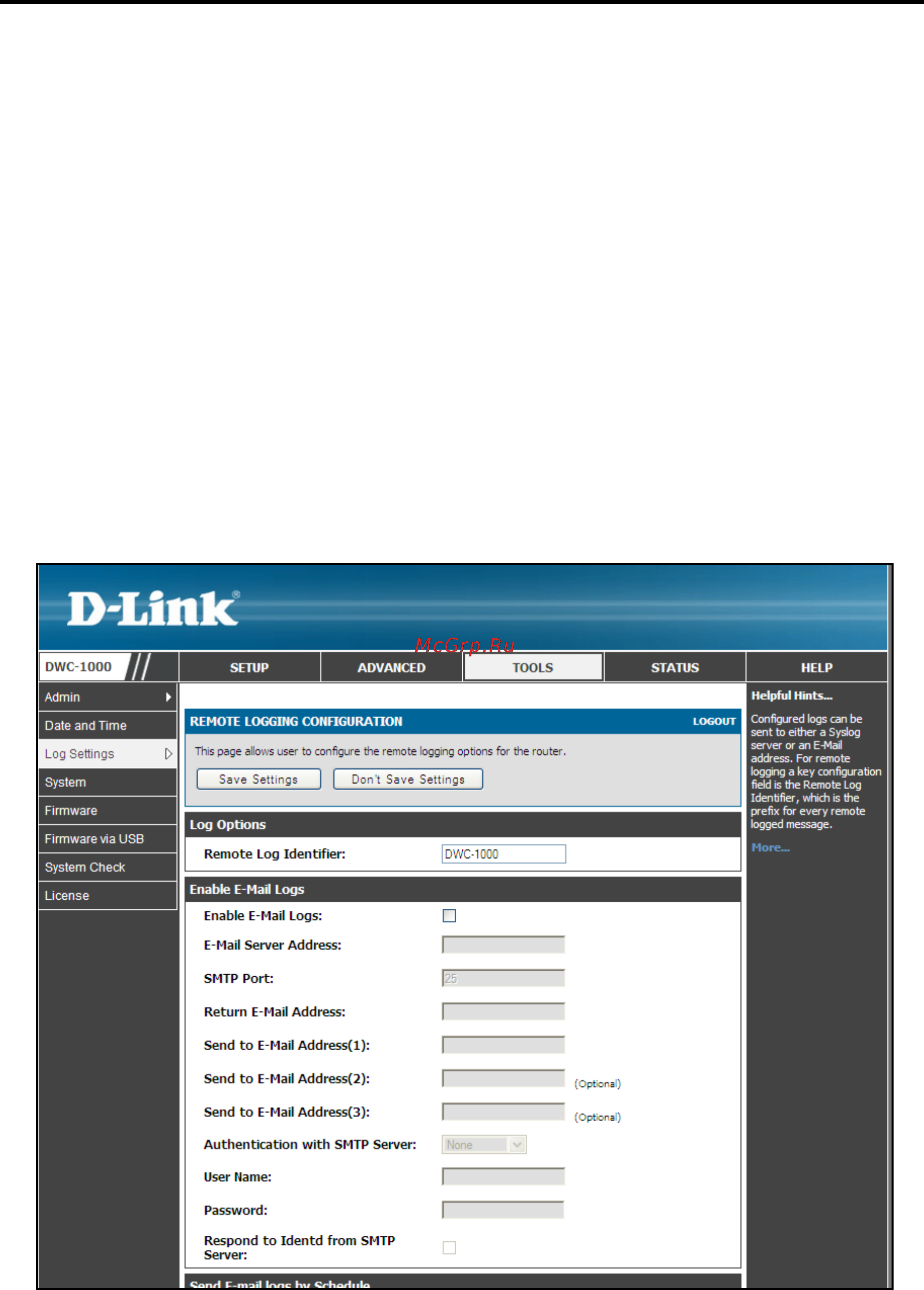

TOOLS > Log Settings > Remote Logging
An external Syslog server is often used by network administrator to collect and store logs
from the wireless controller. This remote device typically has less memory constraints than
the local Event Viewer on the wireless controller’s web management interface (see ―Wireless
Controller Event Log‖ on page 230). Therefore, a number of logs can be collected over a
sustained period. This is useful for debugging network issues or to monitor controller traffic
over a long duration.
The wireless controller supports 8 concurrent Syslog servers. Each server can be configured
to receive different log facility messages of varying severity using the REMOTE LOGGING
CONFIGURATION page. This page also lets you send configuration logs to 3 email
recipients.
