D-Link DWC-1000 [65/246] Port vlans

Advanced Configuration Settings

DWC-1000 Wireless Controller User’s Guide

Port VLANs

Path: SETUP > VLAN Settings > Port VLAN

After you enable the wireless controller’s VLAN function, use the PORT VLANS page to

configure the ports participating in the VLAN.

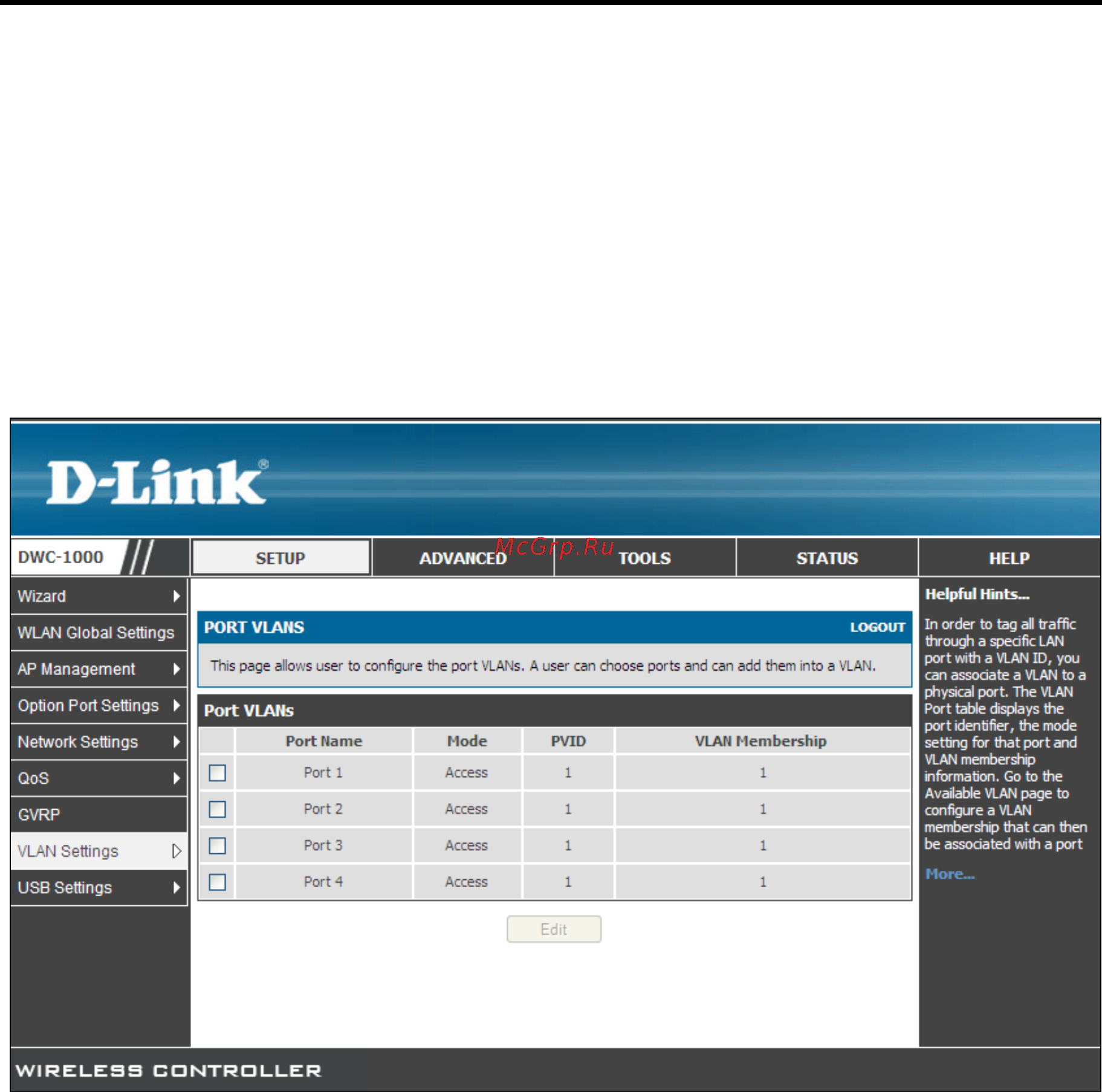

1. Click SETUP > VLAN Settings > Port VLAN. The PORT VLAN page appears.
