D-Link DWC-1000 [72/246] Static routing

Advanced Configuration Settings

DWC-1000 Wireless Controller User’s Guide

Static Routing

A static route tells network devices about an exact, fixed (hard-coded) destination. Static

routes can work well with small networks. Configuring your wireless controller for static

routing allows data transfers between it and a routing device without needing to use dynamic

routing protocols.

Adding a Static Route

Path: ADVANCED > Routing > Static Routing

To add a static route:

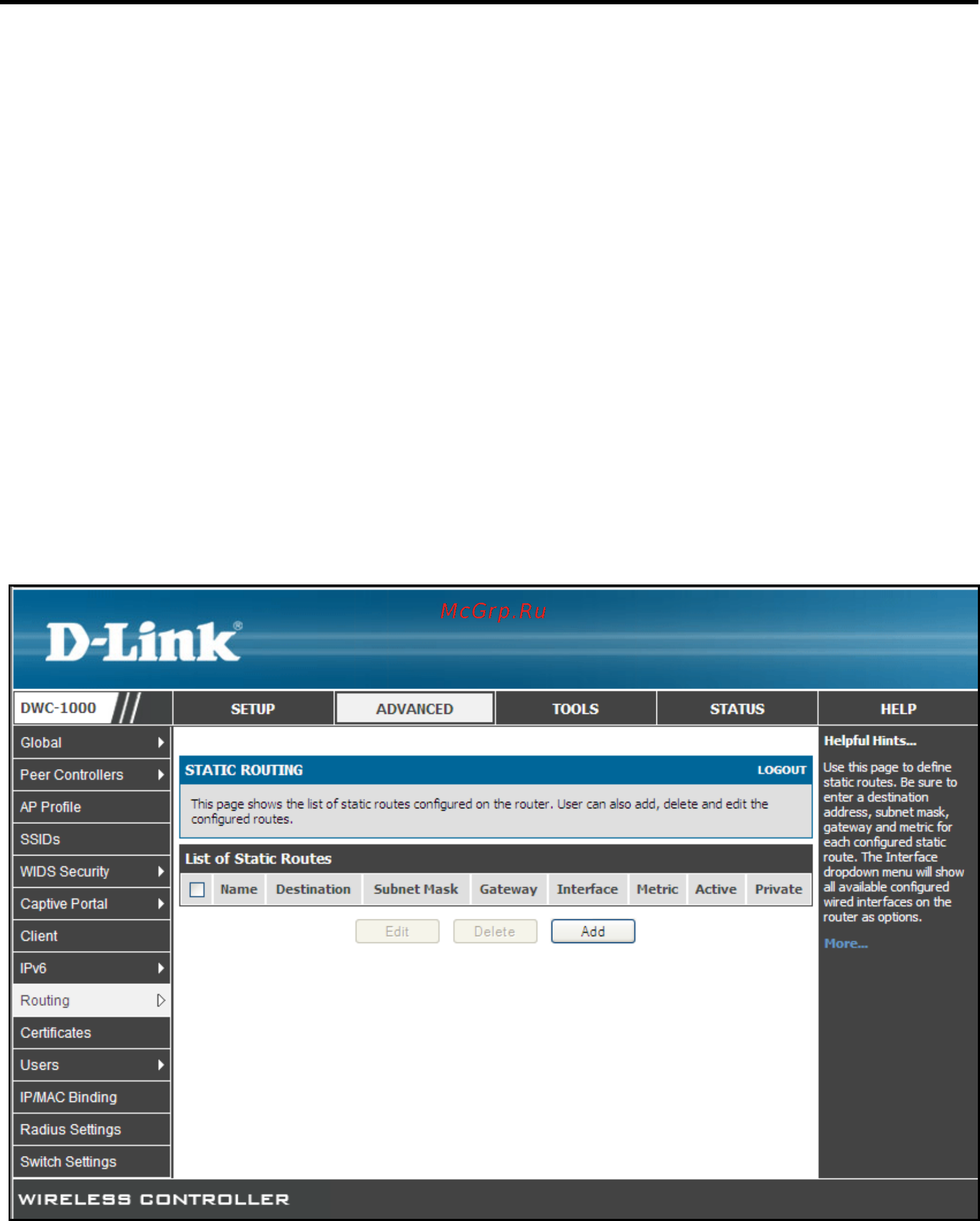

1. Click ADVANCED > Routing > Static Routing. The STATIC ROUTING page appears.

2. Click Add. The STATIC ROUTE CONFIGURATION page appears.
