Troubleshooting
230
DWC-1000 Wireless Controller User’s Guide

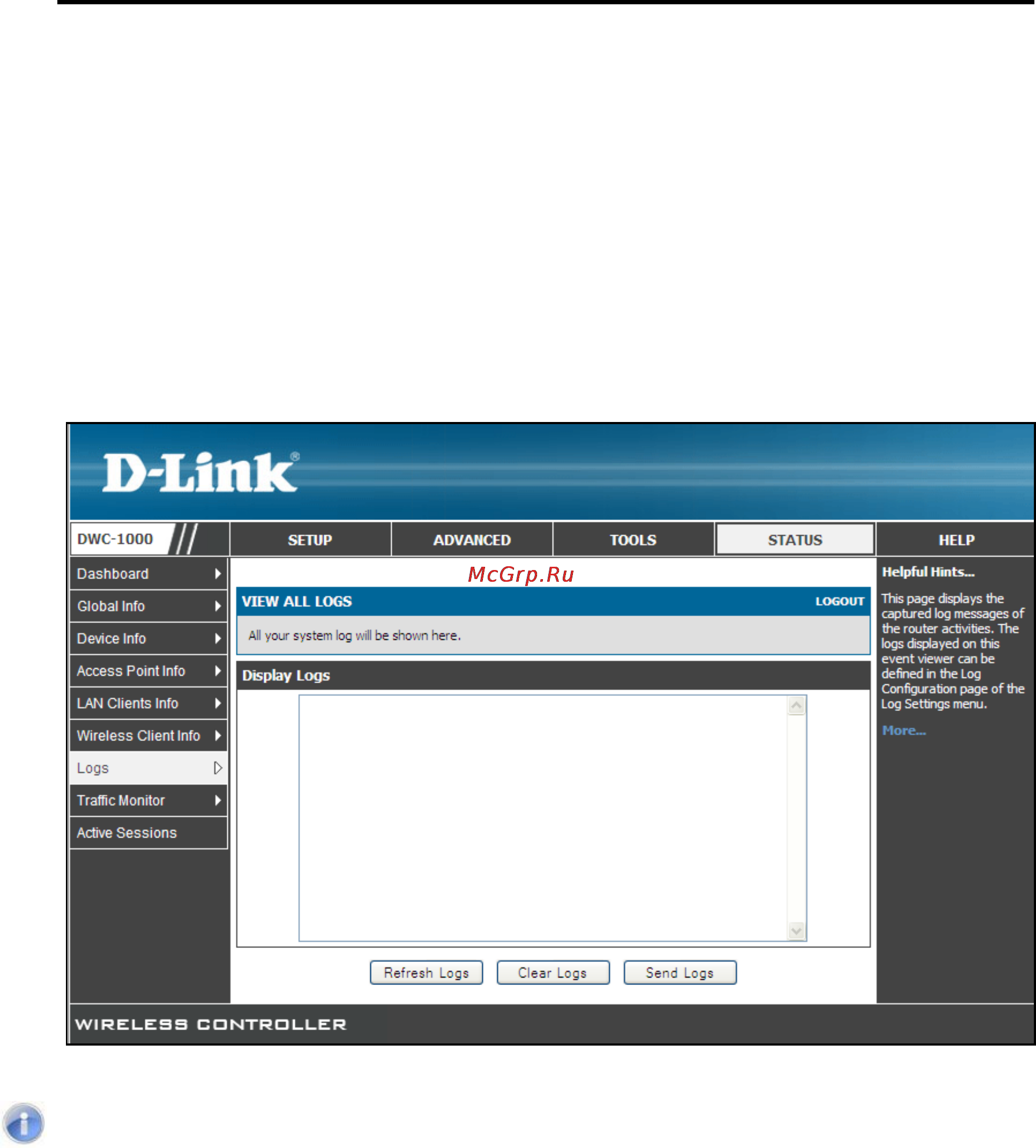

Wireless Controller Event Log
STATUS > Logs > View All Logs
The wireless controller’s web management interface displays configured log messages from
the Status menu. When traffic through or to the wireless controller matches the settings in
the TOOLS > Log Settings > Logs Facility page (see ―Defining What to Log‖ on page 223)
or TOOLS > Log Settings > Logs Configuration page (see ―Tracking Traffic‖ on page
225), the corresponding log message appears in this window with a timestamp:
Note: To understand log messages, it is very important to have accurate system time that has
been set manually or from a NTP server.
