D-Link DWC-1000 [169/246] Ip discovery

Viewing Status and Statistics

169

DWC-1000 Wireless Controller User’s Guide

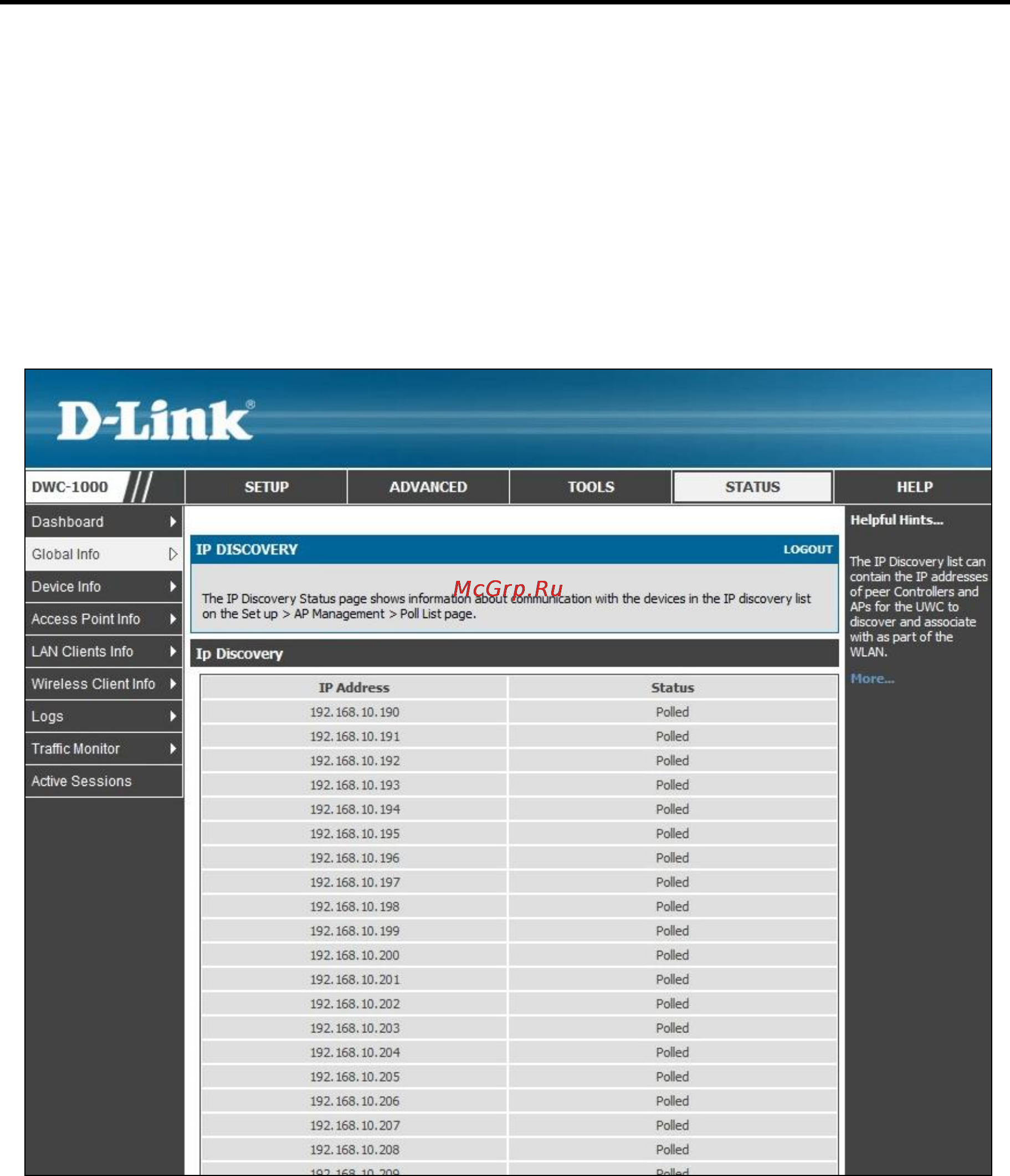

IP Discovery

Path: STATUS > Global Info > IP Discovery

The IP DISCOVERY page shows IP addresses of peer controllers and access points for the

wireless controller to discover and associate with as part of the WLAN.
