Advanced Configuration Settings
73
DWC-1000 Wireless Controller User’s Guide

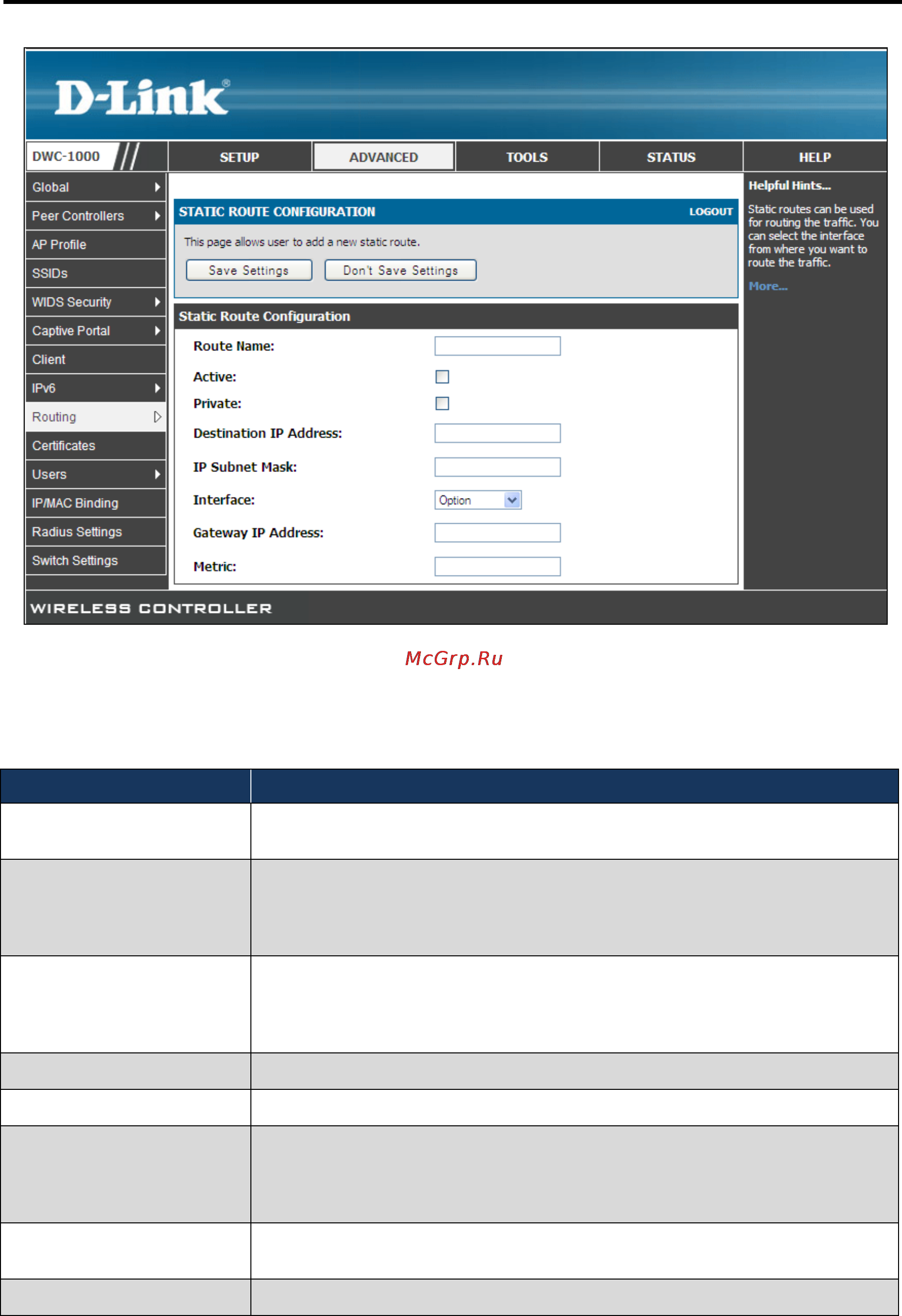

3. Complete the fields in the page (see Table 4-4).
4. Click Save Settings.
Table 4-4. Fields on the STATIC ROUTE CONFIGURATION Page
Field
Description
Route Name
Enter a unique name for this static route. The name should allow you to easily identify this static
route from others you may add.
Active
Activates or deactivates the status route. Choices are:
Checked = activate static route.
Unchecked = deactivate static route.
Private
Designates the static route as private. Choices are:
Checked = static route is private.
Unchecked = static route is not private.
Destination IP Address
Enter the IP address of the static route’s destination.
IP Subnet Mask
Enter the subnet mask of the static route.
Interface
Select the wireless controller interface that will interface to the static route. Choices are:
Option = the wireless controller’s Option port will interface to the static route.
LAN > VLAN = the wireless controller’s LAN or VLAN port will interface to the static route.
Gateway IP Address
Enter the IP address of the gateway router, which is the next hop address for the wireless
controller.
Metric
Enter the administrative distance of the route.
