VPN Settings

DWC-1000 Wireless Controller User’s Guide

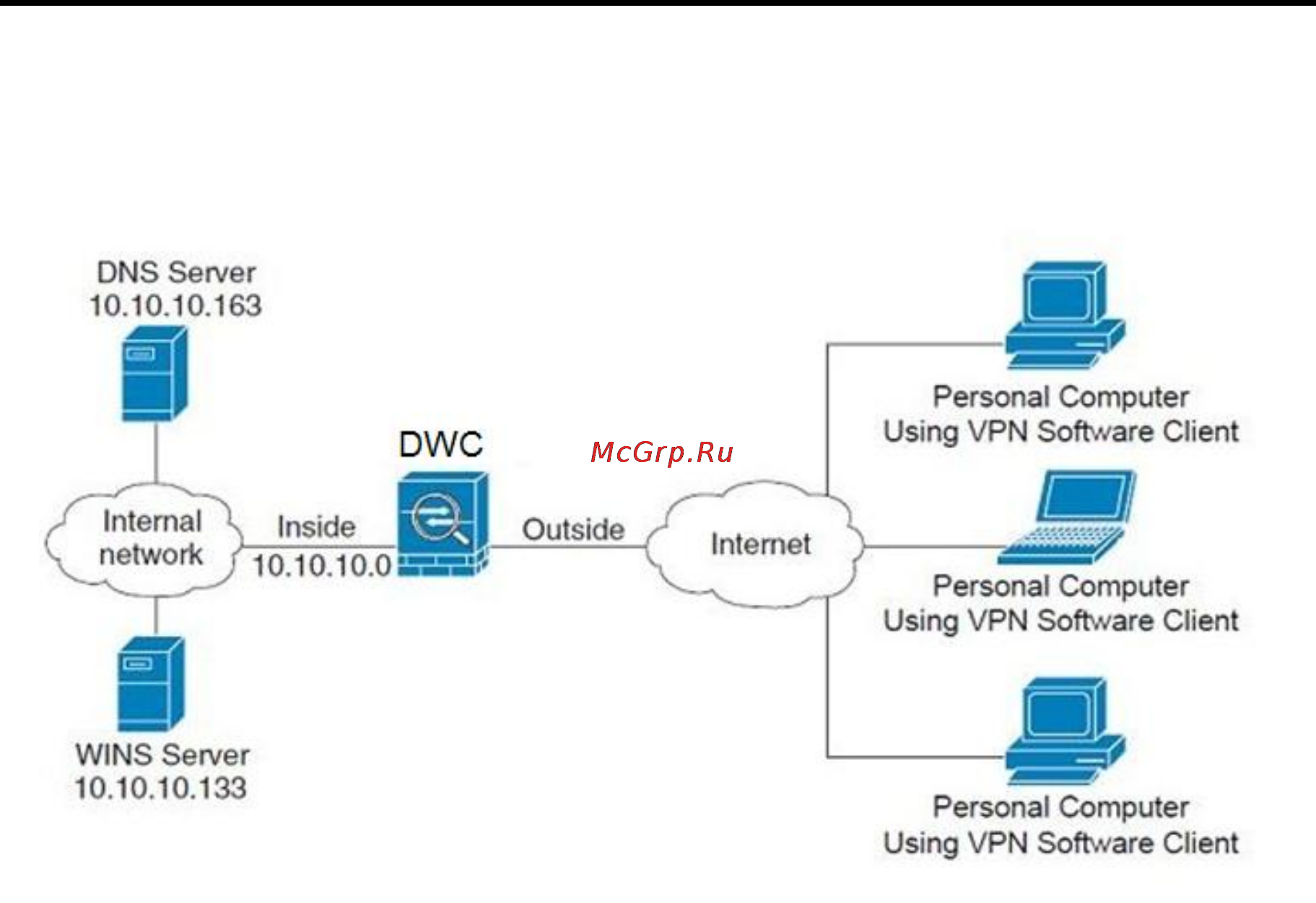

Figure 6-2 shows an example of a configuration where three IPsec clients are connected to

an internal network through the wireless controller IPsec gateway.

Figure 6-2. Example of Three IPsec Client Connections to an Internal Network

through the Wireless Controller IPsec Gateway
