![D-Link DWC-1000 Руководство пользователя для ревизии A1 _версии ПО 4.3.0.x _ 4.4.0.x_ онлайн [29/246] 172917](/img/pdf.png)
D-Link DWC-1000 Руководство пользователя для ревизии A1 _версии ПО 4.3.0.x _ 4.4.0.x_ онлайн [29/246] 172917
![D-Link DWC-1000 Руководство пользователя для ревизии A1 _версии ПО 4.3.0.x _ 4.4.0.x_ онлайн [29/246] 172917](/views2/1203423/page29/bg1d.png)
Basic Configuration
29
DWC-1000 Wireless Controller User’s Guide

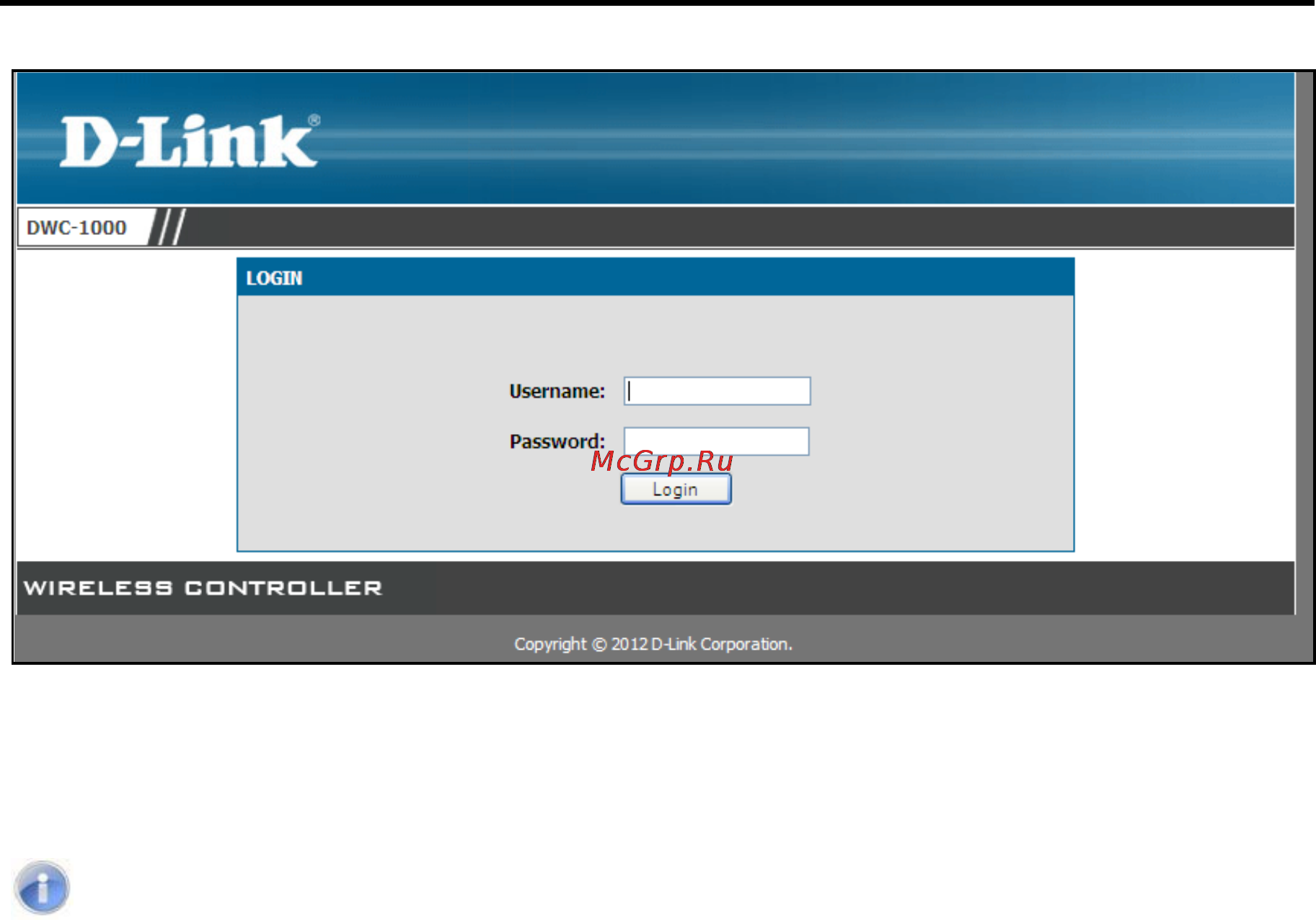

3. If you are logging in for the first time, type the default case-sensitive user name admin and
the default case-sensitive password admin in lower-case letters.
Note: D-Link recommends that you change the password to a new, more secure
password (see ―Editing Users‖ on page 202) and record it in Appendix A.
4. Click Login. The web management interface opens, with the System Status page shown.
This page shows general, option, and LAN status information. You can return to this page
at any time by clicking STATUS > Device Info > System Status.
