Advanced Configuration Settings

DWC-1000 Wireless Controller User’s Guide

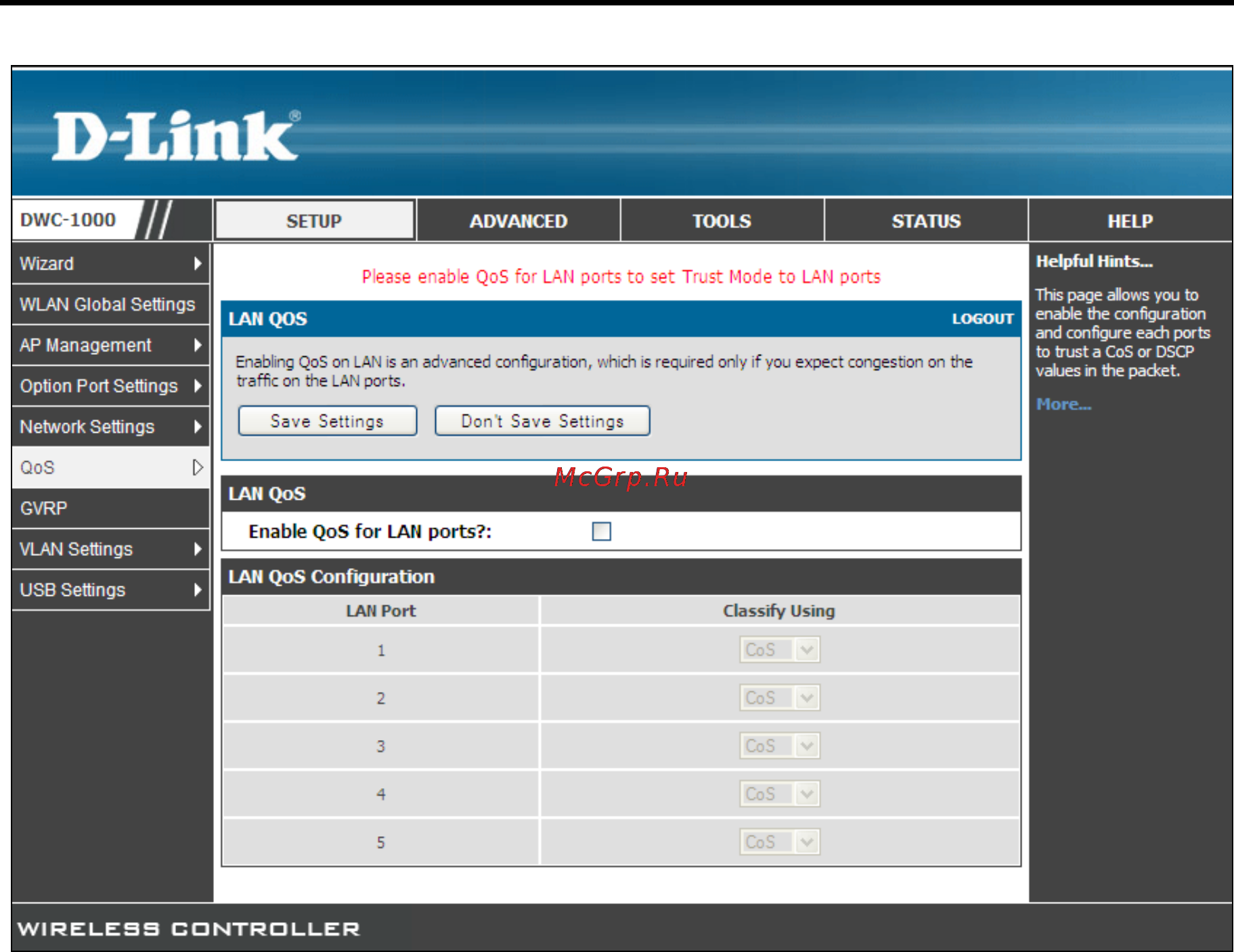

2. Under LAN QoS, check Enable QoS for LAN ports. The fields under LAN QoS

configuration become available.

3. Under LAN QoS configuration, use the Classify Using drop-down list to select whether

DSCP or CoS will be used for the port.

4. Click Save Settings.

5. Proceed to ―Defining DSCP and CoS Settings‖ on page 55 to configure values for DSCP

and CoS and their priority.
