Advanced Configuration Settings

DWC-1000 Wireless Controller User’s Guide

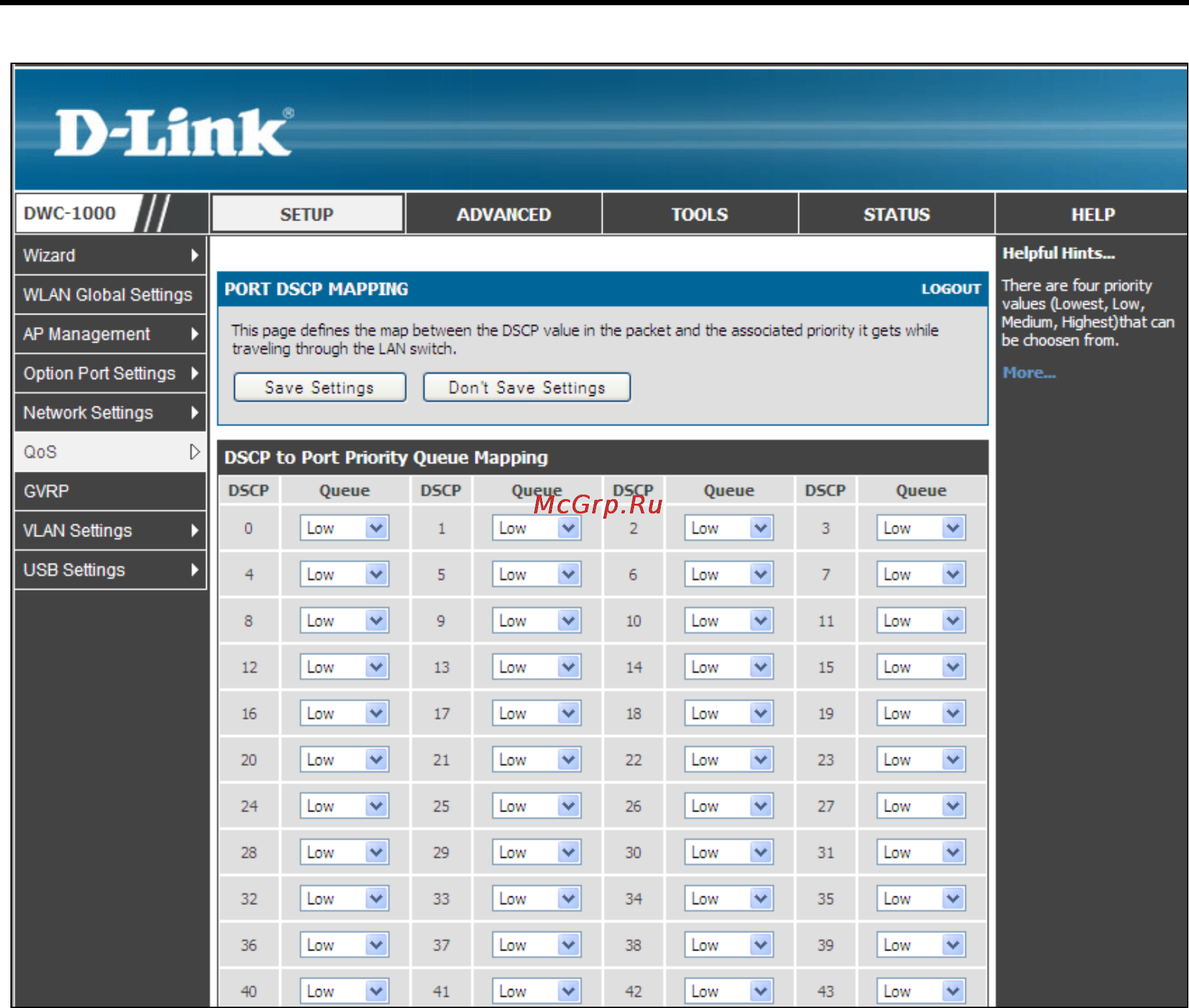

5. On the appropriate row, use the Queue drop-down list to select one of the following

priorities:

– Highest

– Medium

– Low

– Lowest

6. Repeat step 2 for each additional CoS field you want to prioritize.

7. When you finish, click Save Settings.
