Daikin FTXS35G2V1B [182/319] Remove the signal receiver unit
![Daikin FTXS50G2V1B [182/319] Remove the signal receiver unit](/views2/1761734/page182/bgb6.png)
Indoor Unit SiBE04-808_B
171 Removal Procedure

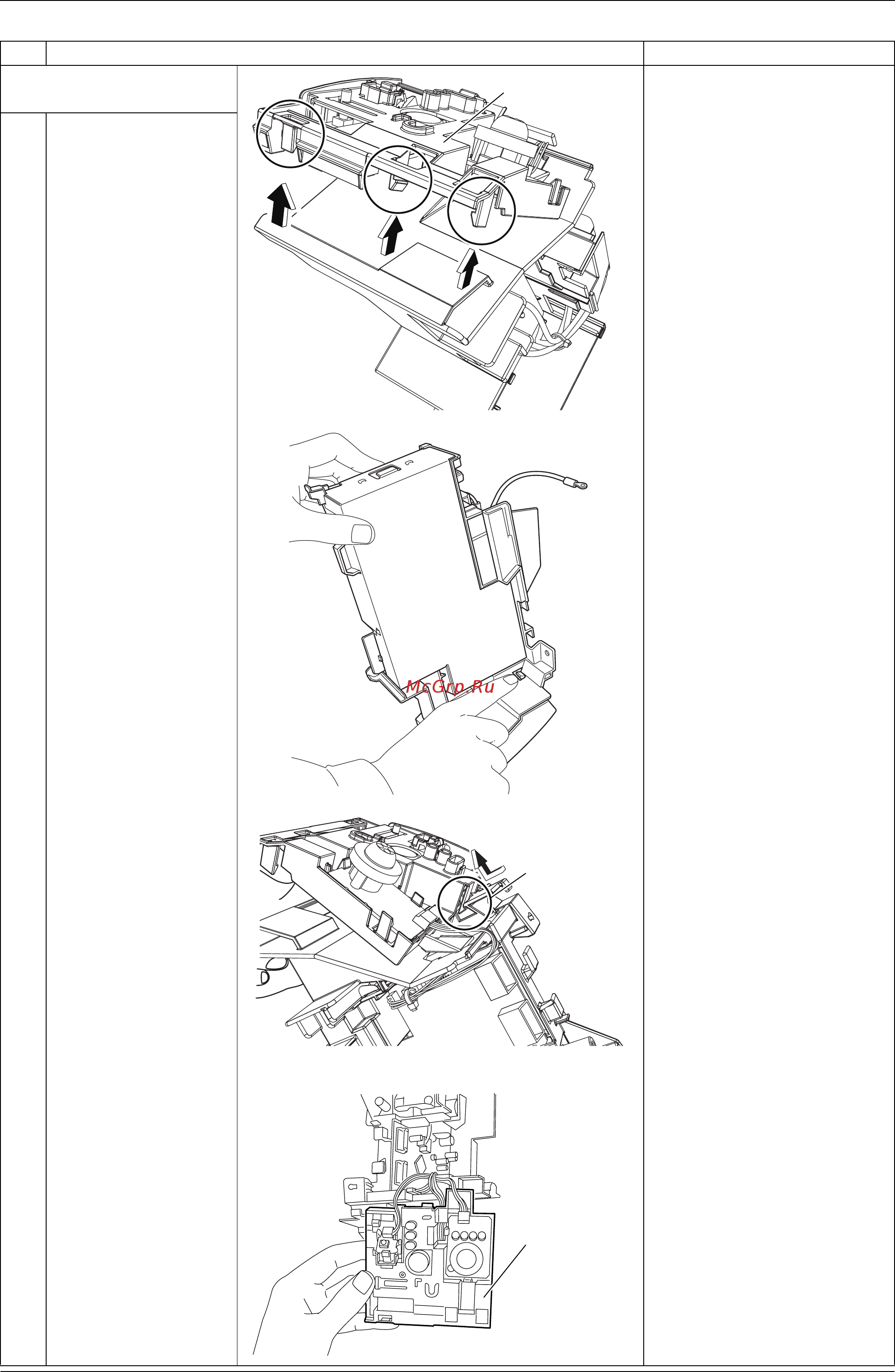

3. Remove the signal
receiver unit.
1
Unfasten the 3 hooks.
2
Unfasten the book on
the opposite side, and
lift up the signal
receiver unit.
3
Remove the signal
receiver unit.
Step Procedure Points
(R12277)
Signal receiver unit
(R8262)
(R12278)
Hook
(R8088)
Signal receiver unit
