FTXS20/25/35/42/50G2V1B SiBE04-808_B
63 Operation Manual
2. FTXS20/25/35/42/50G2V1B

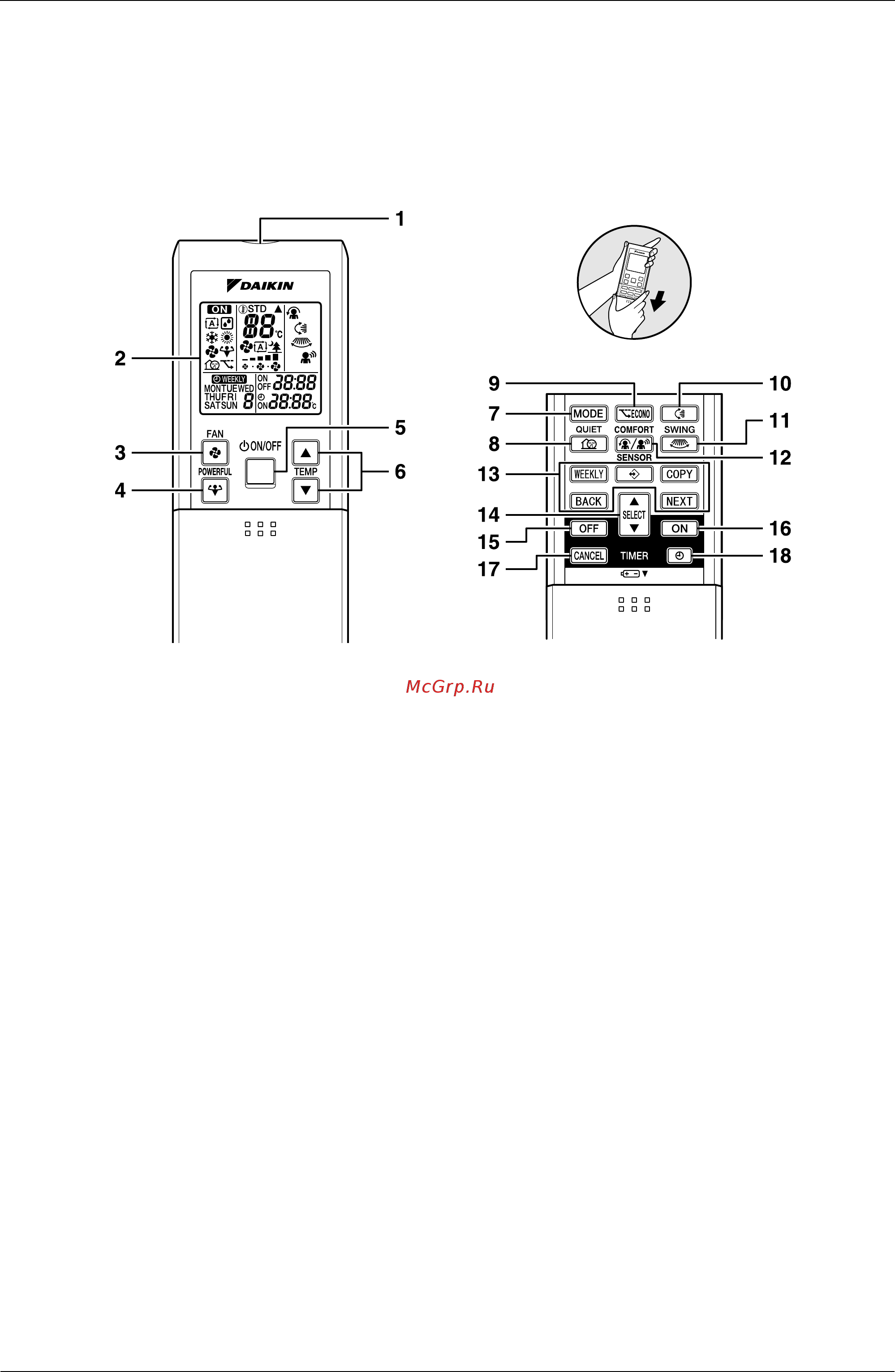

2.1 Remote Controller
6
Remote Controller
1. Signal transmitter:
• It sends signals to the indoor unit.
2. Display:
• It displays the current settings.
3. FAN setting button:
• It selects the airflow rate setting.
4. POWERFUL button:
POWERFUL operation (page 17.)
5. ON/OFF button:
• Press this button once to start operation.
Press once again to stop it.
6. TEMPERATURE adjustment buttons:
• It changes the temperature setting.
7. MODE selector button:
•
8. QUIET button:
OUTDOOR UNIT QUIET operation (page 18.)
9. ECONO button:
ECONO operation (page 19.)
10. SWING button:
• Horizontal blades (flaps) (page 12.)
11. SWING button:
• Vertical blades (louvers) (page 12.)
12. COMFORT/SENSOR button:
•
13.
• WEEKLY TIMER operation (page 22.)
14. SELECT button:
•
15. OFF TIMER button: (page 20.)
16. ON TIMER button: (page 21.)
17. TIMER CANCEL button:
• It cancels the timer setting. (page 20, 21.)
•
18. CLOCK button
<ARC452A3>
<Open the front cover>
(In this illustration, each section is shown
with its displays ON for the purpose of
explanation.)
It selects the operation mode.
(AUTO/DRY/COOL/HEAT/FAN) (page 10.)
COMFORT AIRFLOW and INTELLIGENT
EYE operation (page 14.)
WEEKLY/PROGRAM/COPY/BACK/NEXT
button:
It changes the ON/OFF TIMER and
WEEKLY TIMER settings. (page 20, 22.)
It cannot be used for the WEEKLY TIMER
operation.
