SiBE04-808_B Outdoor Unit - RK(X)S20-35G2V1B9, ARXS20-35G3V1B
Removal Procedure 228

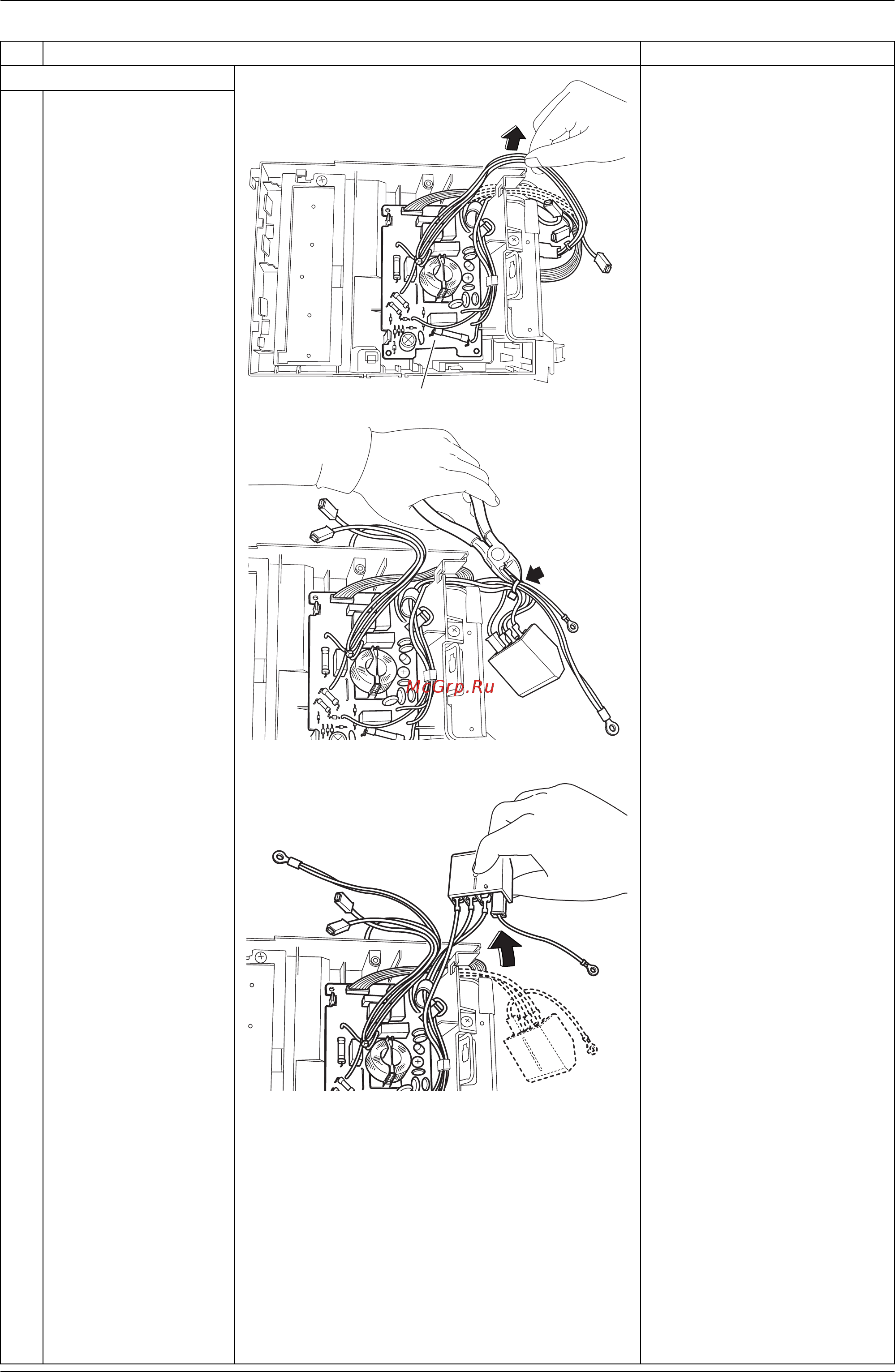

2. Remove the filter PCB.
1
Release the harnesses
from the hook.
2
Cut the clamp.
3
Release the harnesses
from the hook.
Step
Procedure Points
(R11869)
Filter PCB
(R11871)
(R11872)
