![Daikin FTXS35G2V1B [203/319] Remove the 4 screws on the right side panel](/img/pdf.png)
Daikin FTXS35G2V1B [203/319] Remove the 4 screws on the right side panel
![Daikin FTXS35G2V1B [203/319] Remove the 4 screws on the right side panel](/views2/1761734/page203/bgcb.png)

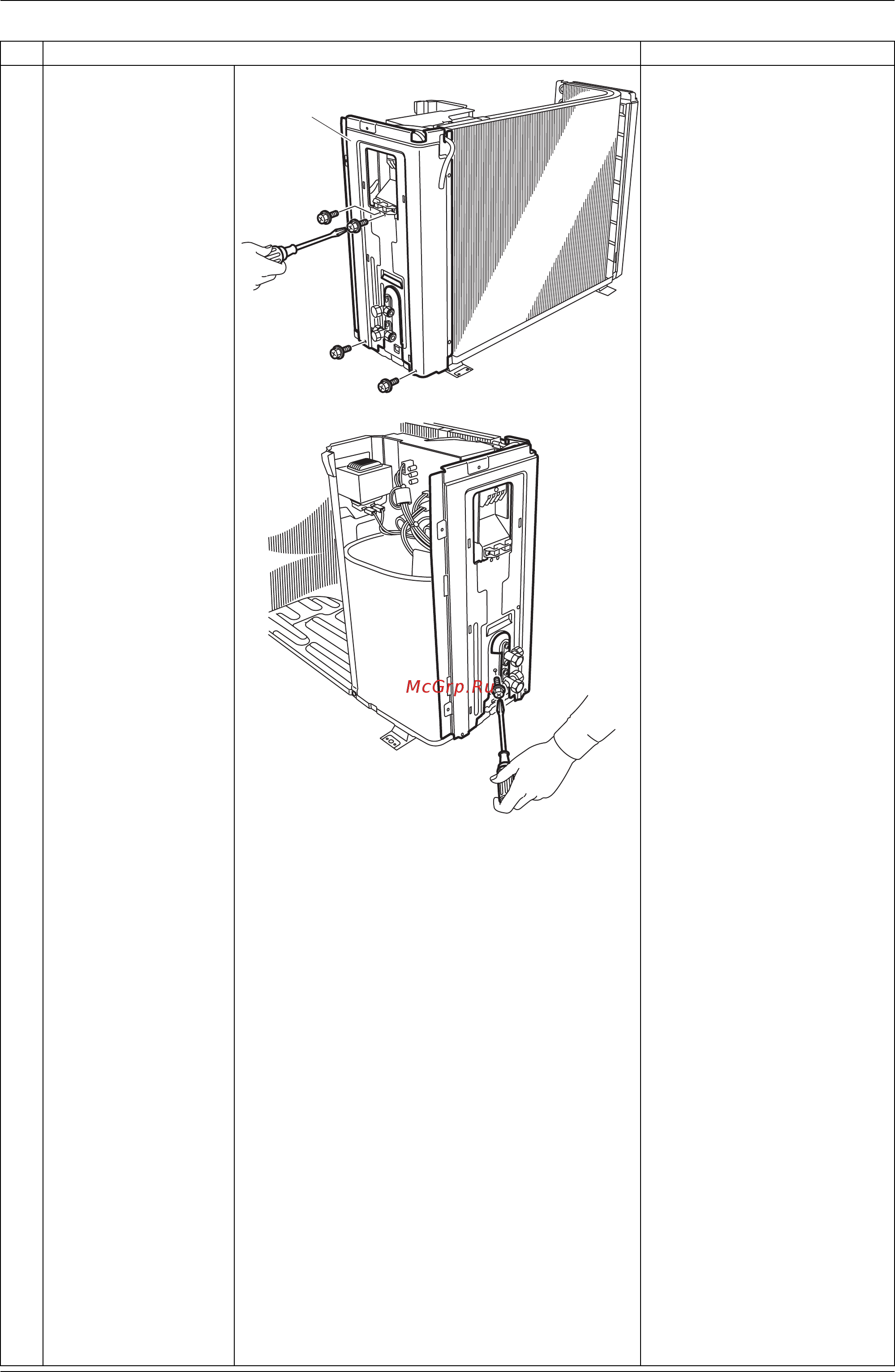

SiBE04-808_B Outdoor Unit - RK(X)S20-35G2V1B, ARXS20-35G2V1B
Removal Procedure 192
4
Remove the 4 screws
on the right side panel.
5
Remove the screw near
the stop valves.
Step
Procedure Points
(R7210)
Right side panel
(R7211)
