![Daikin FTXS35G2V1B [30/319] Pcb detail pcb 1 control pcb](/img/pdf.png)
Daikin FTXS35G2V1B [30/319] Pcb detail pcb 1 control pcb
![Daikin FTXS42G2V1B [30/319] Pcb detail pcb 1 control pcb](/views2/1761734/page30/bg1e.png)
Printed Circuit Board Connector Wiring Diagram SiBE04-808_B
19 Printed Circuit Board Connector Wiring Diagram

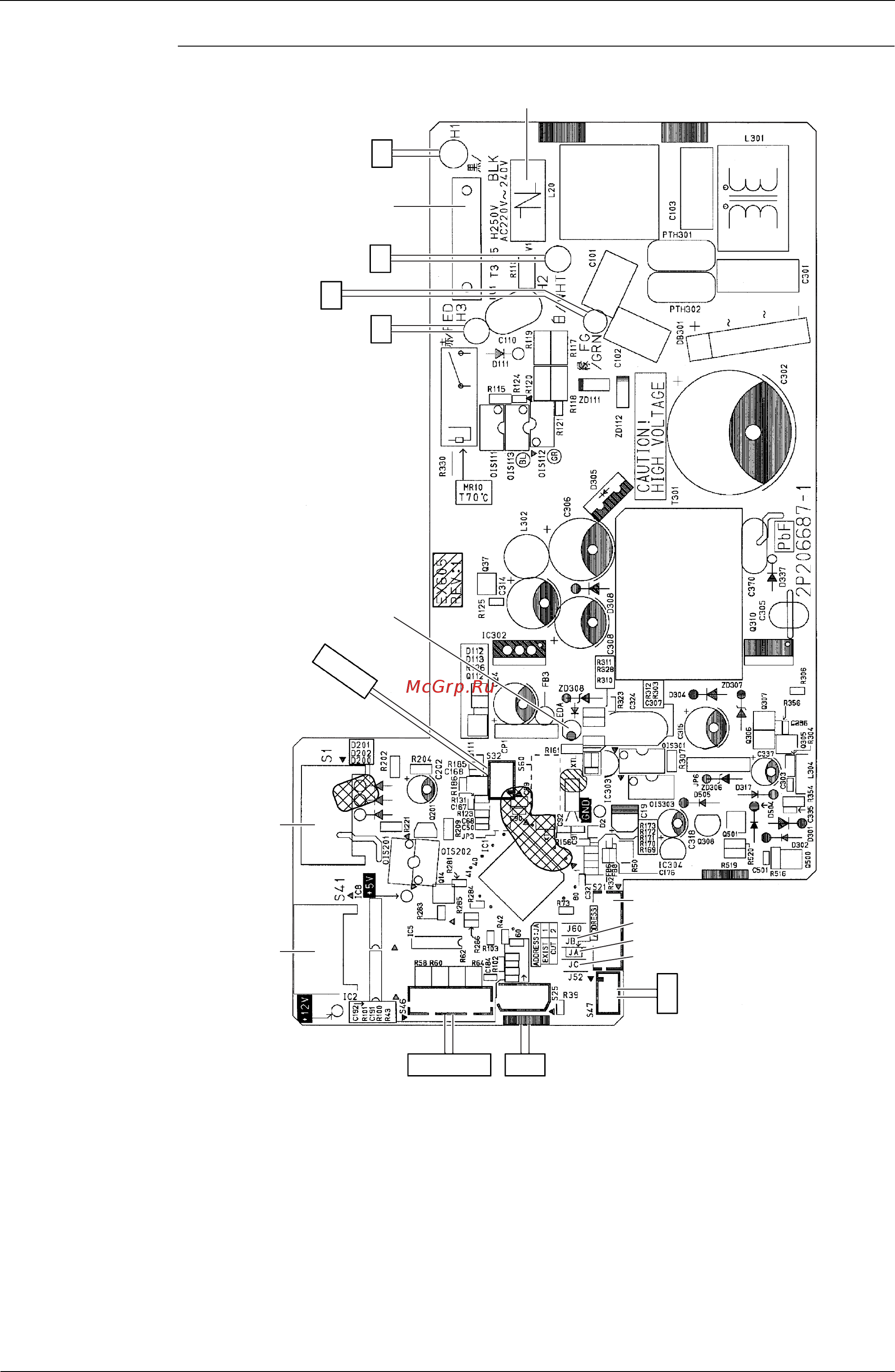

PCB Detail PCB (1): Control PCB
V1
FU1
S1
S41
S21
S47
JB
JA
JC
S46 S25
LED A
S32
FG
H1
H2
H3
2P206687-1
