Daikin FTXS35G2V1B [263/319] Removal of sound blanket
![Daikin FTXS42G2V1B [263/319] Removal of sound blanket](/views2/1761734/page263/bg107.png)
SiBE04-808_B Outdoor Unit - RK(X)S42G2V1B, ARXS42G2V1B
Removal Procedure 252
4.4 Removal of Sound Blanket
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points

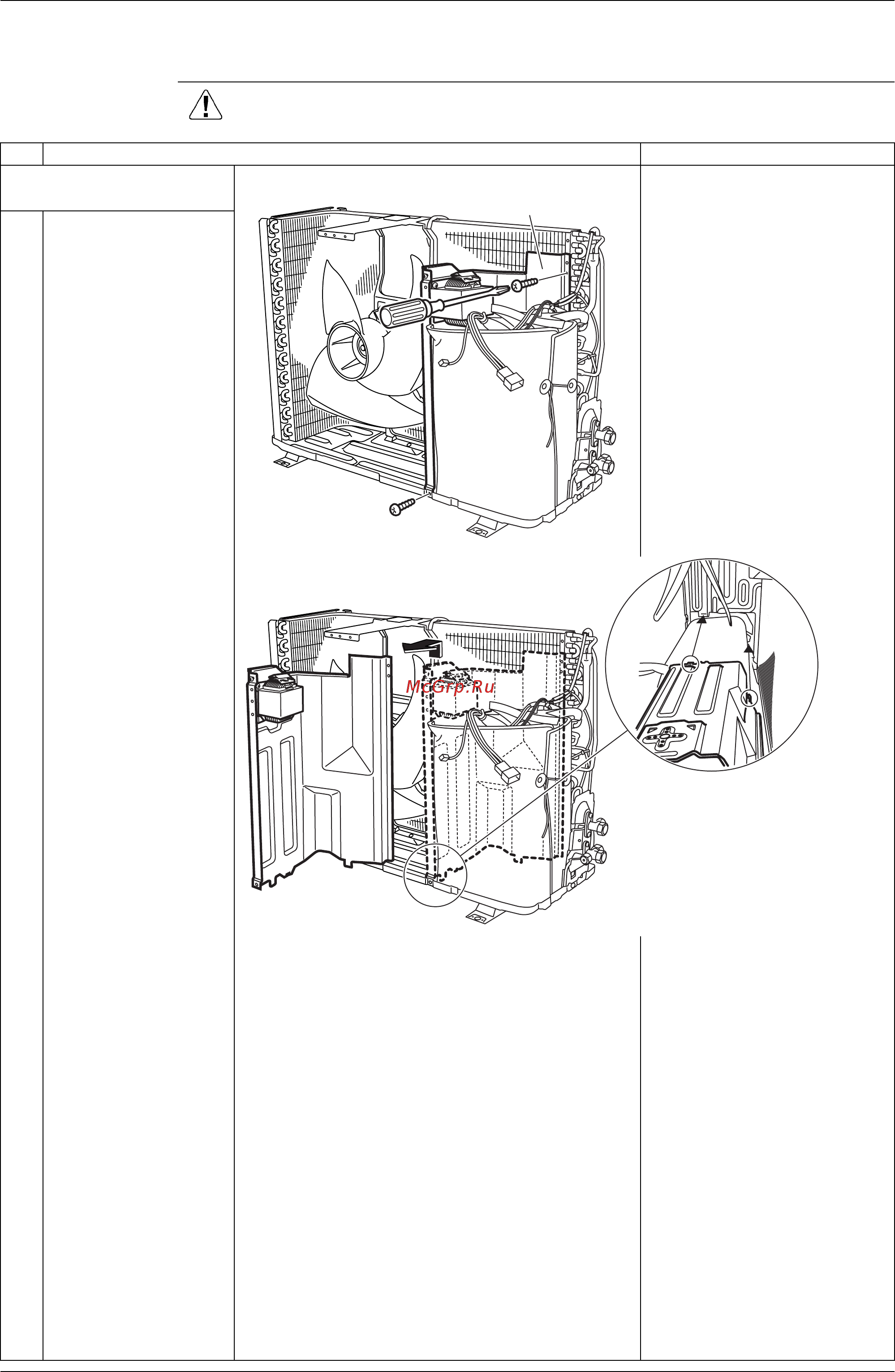

1. Remove the partition
plate.
When reassembling, fit the
lower hook into the bottom
frame.
1
Remove the 2 screws.
2
The partition plate has
hooks on the lower
side. Lift and pull the
partition plate to
remove.
(R12282)
Partition plate
(R8174)
(R8175)
Remove the screw to remove
the reactor.
