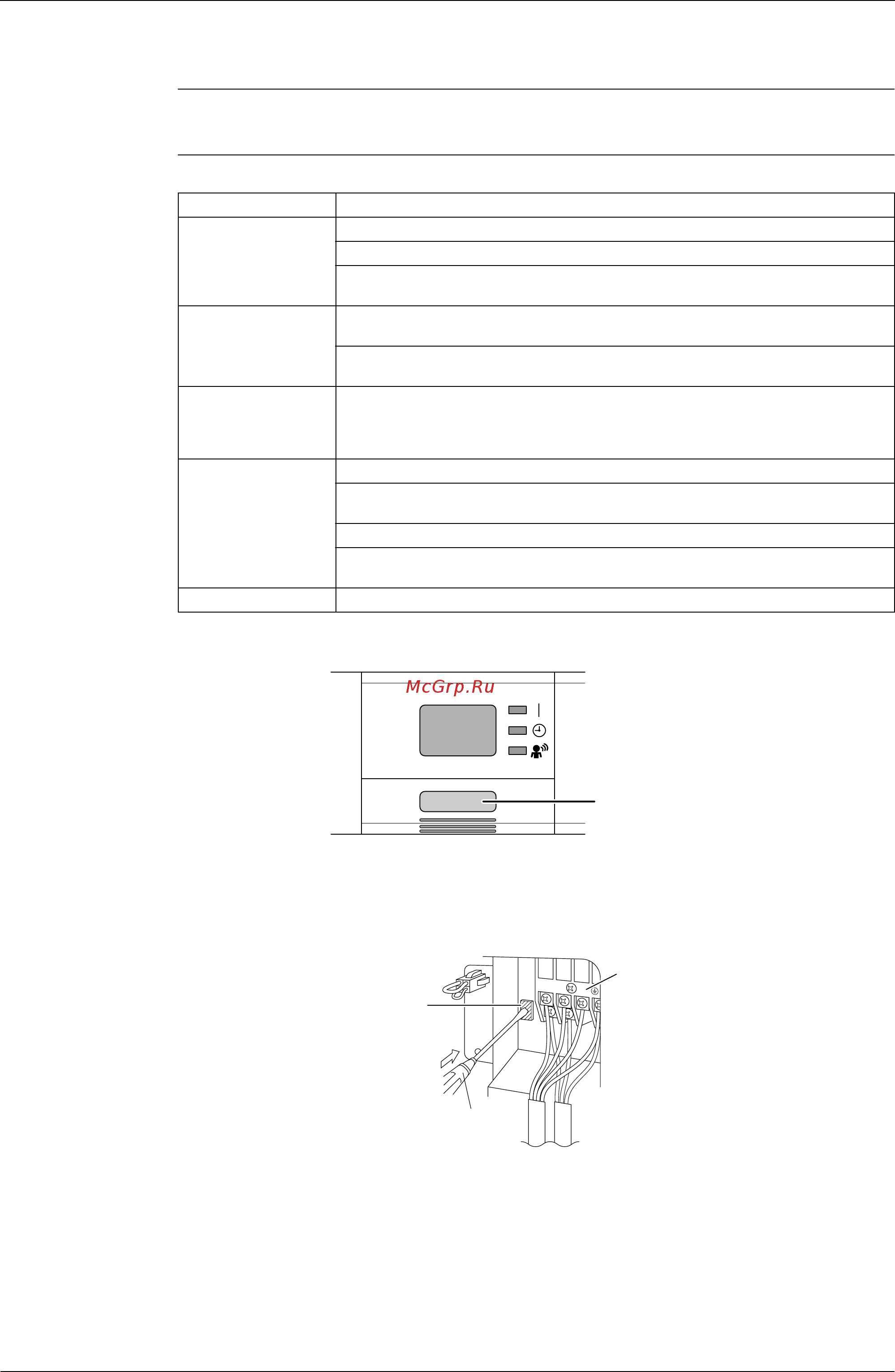

Forced Cooling Operation Mode SiBE04-808_B
289 Trial Operation and Field Settings
2. Forced Cooling Operation Mode
Outline Forced operation mode includes only forced cooling.
Detail
Item Forced Cooling
Conditions 1) The outdoor unit is not abnormal and not in the 3-minute standby mode.
2) The outdoor unit is not operating.
The forced cooling operation is allowed when the above both conditions are
met.
Start 1) Press the forced cooling operation ON/OFF button (SW1) on the indoor unit
for 5 seconds.
2) Press the forced cooling operation ON/OFF button (SW1) on the outdoor
unit.
Command
frequency
RK(X)S20-35G2V1B, ARXS20-35G2V1B: 68 Hz
RK(X)S20-35G2V1B9, ARXS20-35G3V1B: 58 Hz
RK(X)S42G2V1B, ARXS42G2V1B: 47 Hz
RK(X)S50G2V1B, ARXS50G2V1B: 66 Hz
End 1) The operation ends automatically after 15 minutes.
2) Press the forced cooling operation ON/OFF button (SW1) on the indoor unit
again.
3) Press the ON/OFF button on the remote controller.
4) Press the forced cooling operation ON/OFF button (SW1) on the outdoor
unit.
Others The protection functions are prior to all others in the forced cooling operation.
(R14040)
ON/OFF button (SW1)
Indoor Unit
1
2
3
Screwdriver
Power supply
terminal board
(R14039)
(SW1)
Outdoor Unit
(RK(X)S 20/25/35G2V1B, ARXS20/25/35G2V1B)
