SiBE04-808_B FTXS20/25/35/42/50G2V1B
Operation Manual 64
2.2 AUTO · DRY · COOL · HEAT · FAN Operation
10
AUTO · DRY · COOL · HEAT · FAN Operation

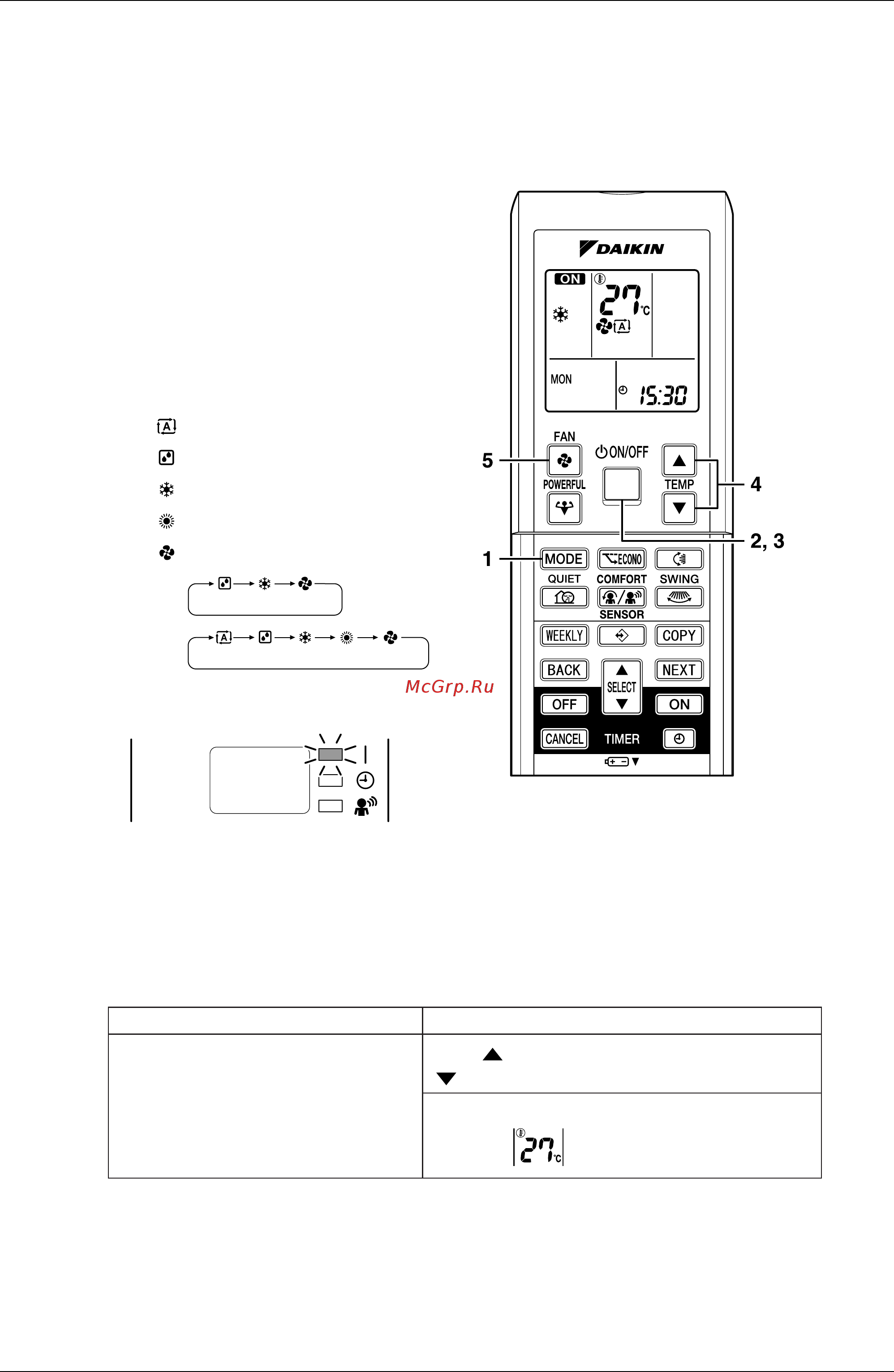

To start operation
1.
•
: AUTO
: DRY
: COOL
: HEAT
: FAN
2
. Press “ON/OFF button”.
• The OPERATION lamp lights up.
To stop operation
3. Press “ON/OFF button” again.
• Then OPERATION lamp goes off.
To change the temperature setting
4. Press “TEMPERATURE adjustment button”.
DRY or FAN mode AUTO or COOL or HEAT mode
The temperature setting is not variable.
Set to the temperature you like.
The air conditioner operates with the operation
mode of your choice.
From the next time on, the air conditioner will
operate with the same operation mode.
Press “MODE selector button”
and select a operation mode.
Each pressing of the button advances
the mode setting in sequence.
Cooling only
model
Heat pump
model
Press “ ” to raise the temperature and press
“ ” to lower the temperature.
