Daikin FTXS35G2V1B [224/319] The front panel has 4 hooks
![Daikin FTXS25G2V1B [224/319] The front panel has 4 hooks](/views2/1761734/page224/bge0.png)
Outdoor Unit - RK(X)S20-35G2V1B9, ARXS20-35G3V1B SiBE04-808_B
213 Removal Procedure
5

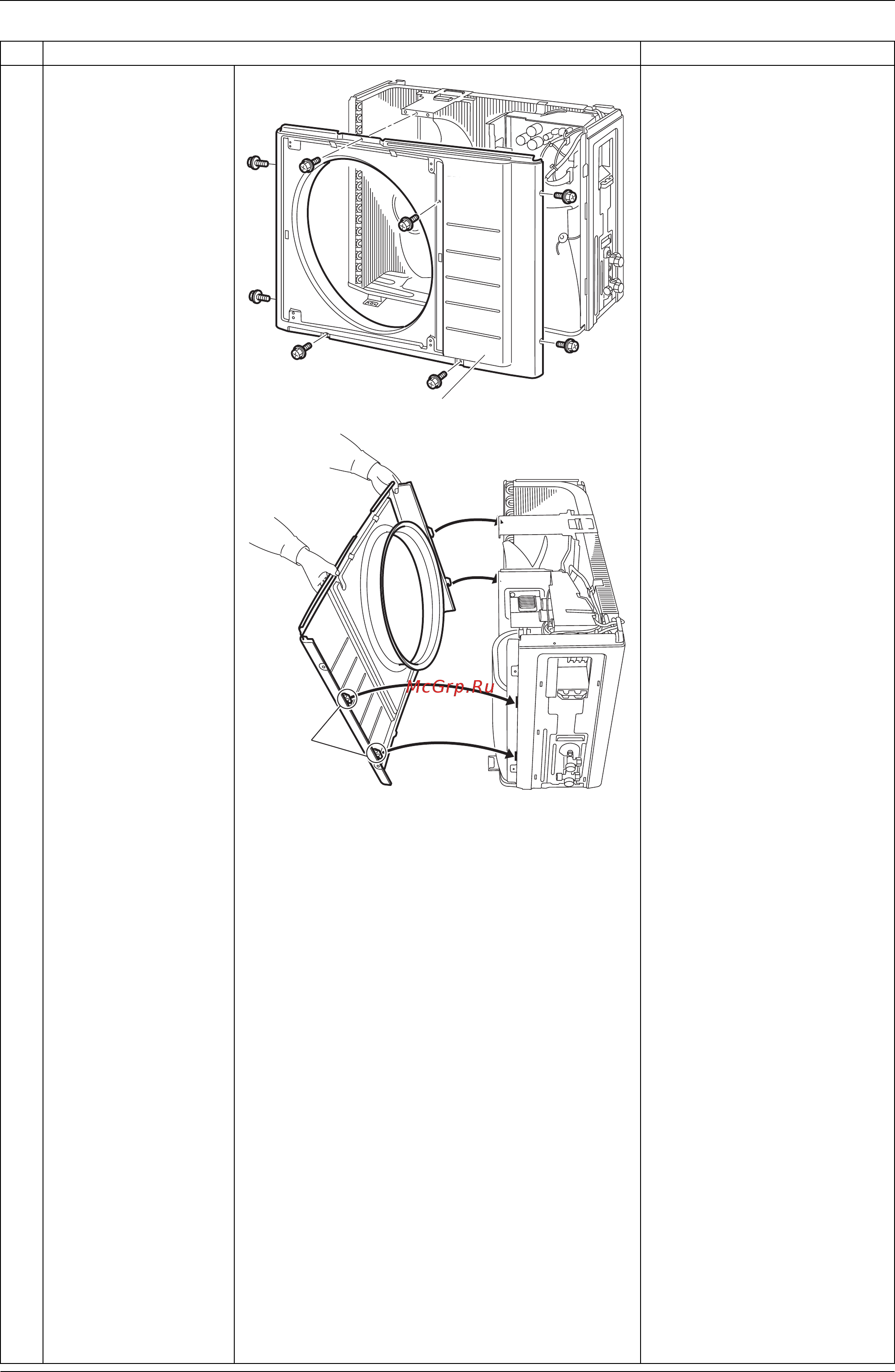

Remove the 8 screws
of the front panel.
6
Unfasten the hooks.
Pull and remove the
front panel.
The front panel has 4 hooks.
Step
Procedure Points
DAIKIN
INVERTER
(R11825)
Front panel
(R11826)
Hooks
