Daikin FTXS35G2V1B [280/319] Remove the fan motor
![Daikin FTXS50G2V1B [280/319] Remove the fan motor](/views2/1761734/page280/bg118.png)
Outdoor Unit - RK(X)S50G2V1B, ARXS50G2V1B SiBE04-808_B
269 Removal Procedure

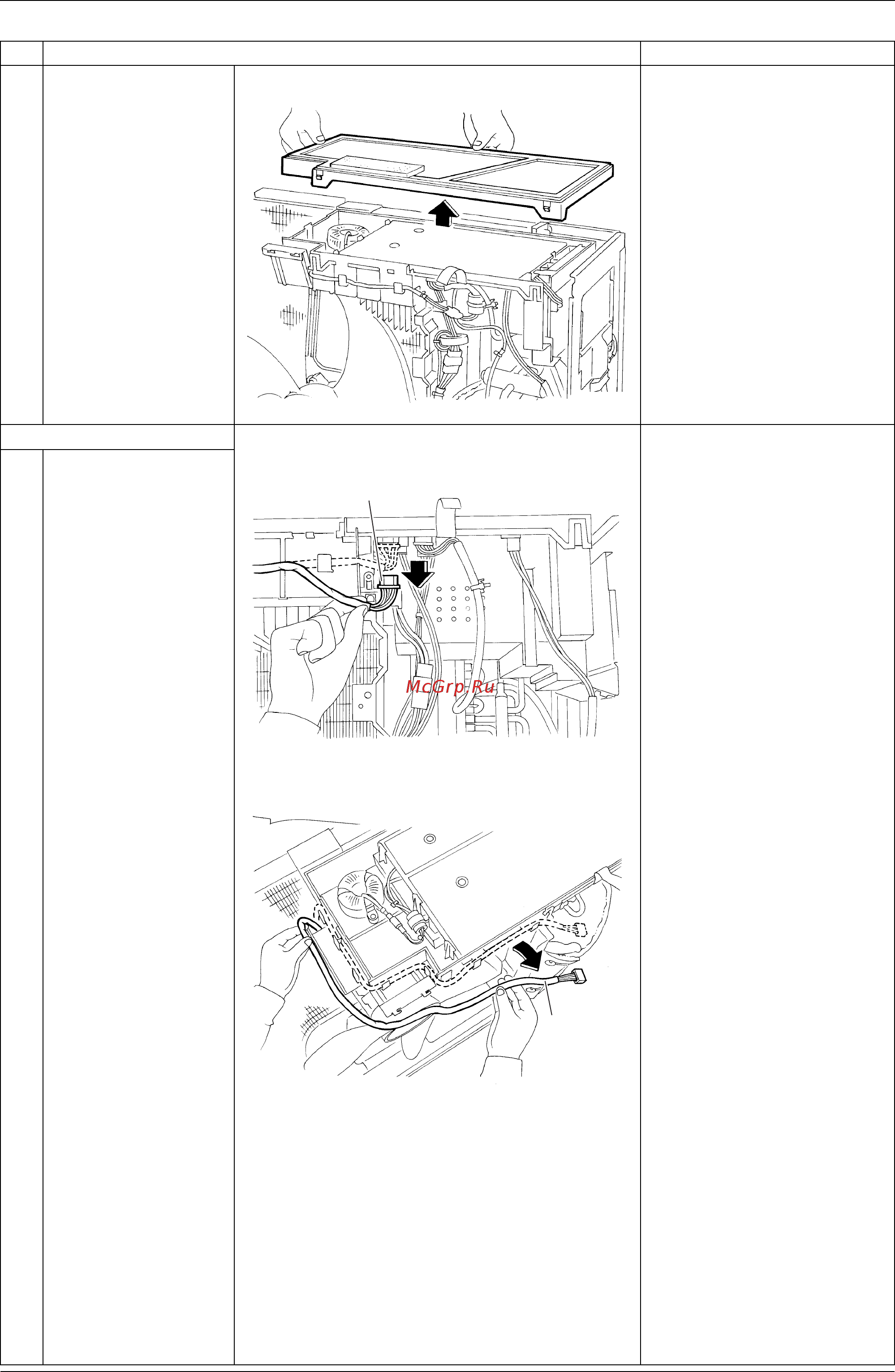

2. Remove the fan motor.
1
Disconnect the
connector for the fan
motor [S70].
2
Release the fan motor
lead wire from the 7
hooks.
Step
Procedure Points
(R5258)
[S70]
(R5259)
Fan motor
lead wire
(R5260)
