Daikin FTXS35G2V1B [257/319] Lift and remove the electrical box
![Daikin FTXS42G2V1B [257/319] Lift and remove the electrical box](/views2/1761734/page257/bg101.png)
SiBE04-808_B Outdoor Unit - RK(X)S42G2V1B, ARXS42G2V1B

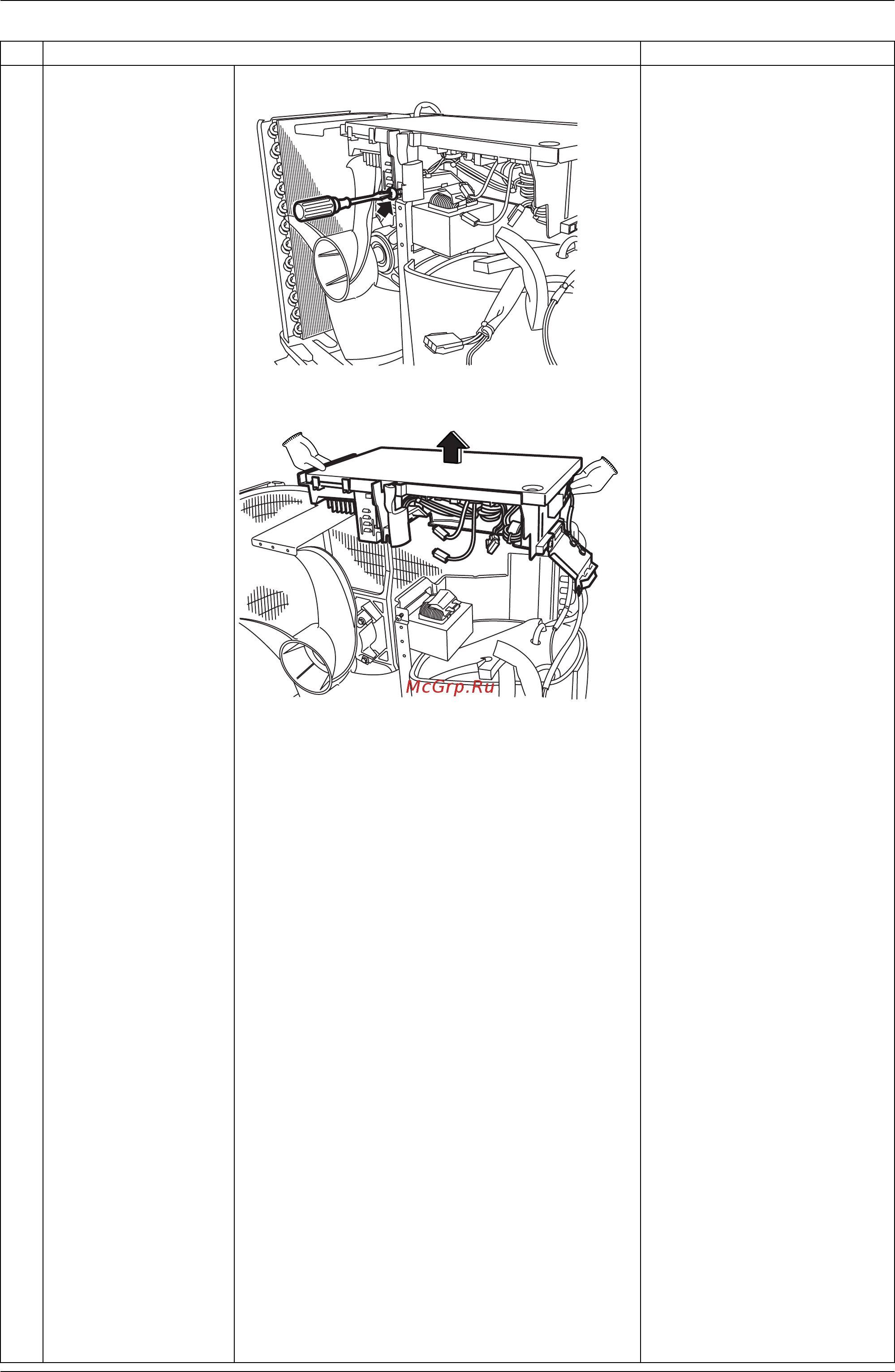

Removal Procedure 246
14
Remove the screw in
front of the electrical
box.
15
Lift and remove the
electrical box.
Step
Procedure Points
(R0263)
(R0264)
