SiBE04-808_B Outdoor Unit - RK(X)S42G2V1B, ARXS42G2V1B
Removal Procedure 254

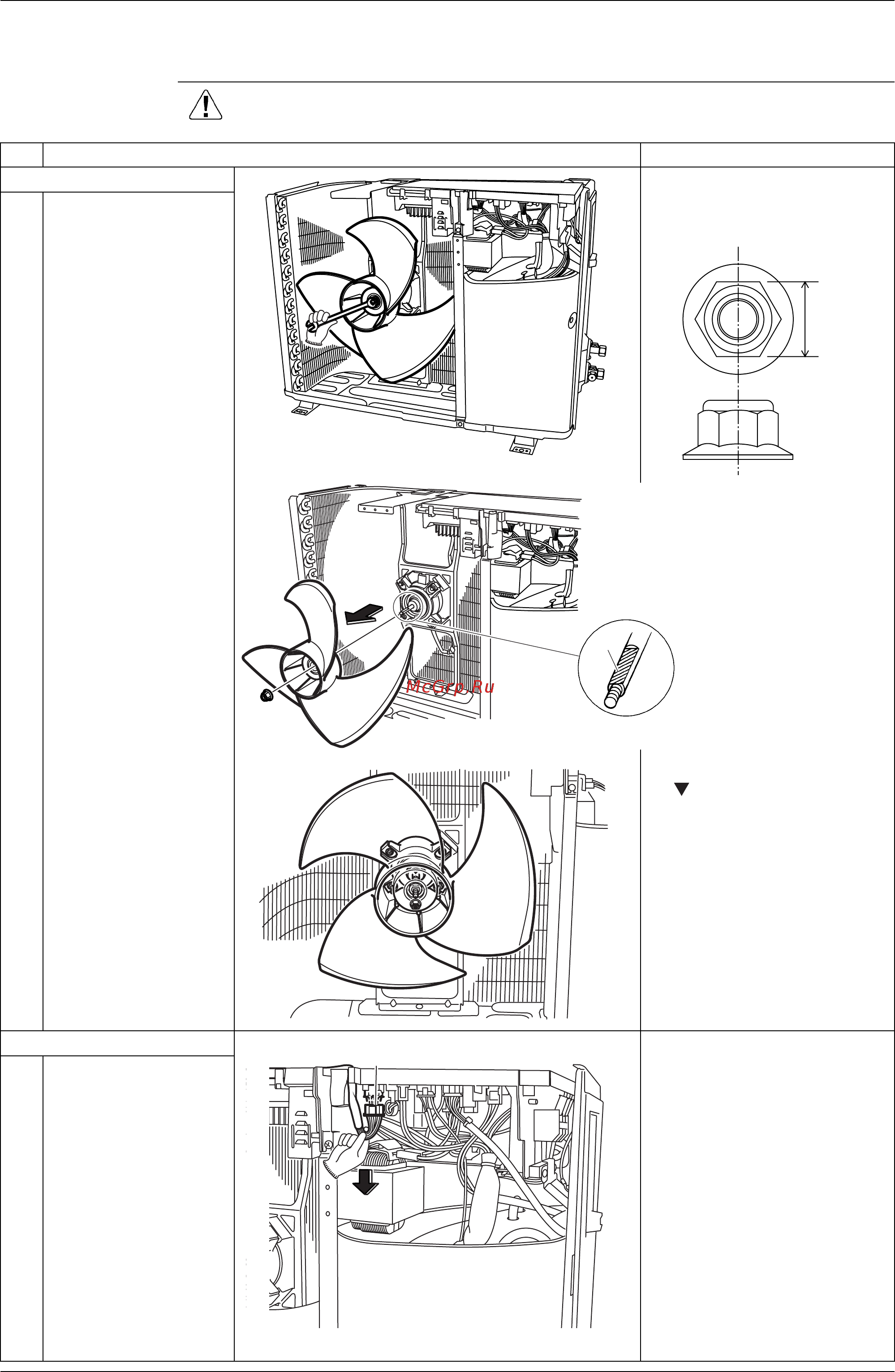

4.5 Removal of Outdoor Fan / Fan Motor
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1. Remove the outdoor fan.
The screw has reverse
winding.
Nut size: M6
1
Remove the washer
fitted nut of the outdoor
fan.
2
Remove the outdoor
fan.
When reassembling, align
mark of the outdoor fan
with D-cut section of the
motor shaft.
2. Remove the fan motor.
1
Disconnect the
connector for the fan
motor [S70].
(R8181)
10 mm
(R12236)
(R8182)
D-cut
(R8183)
(R8184)
[S70]
